RAM air intake sleeve
RAM air intake sleeve design listed for 1992–2002 Mazda RX-7. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- RX-7
- Year range
- 1992–2002
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description

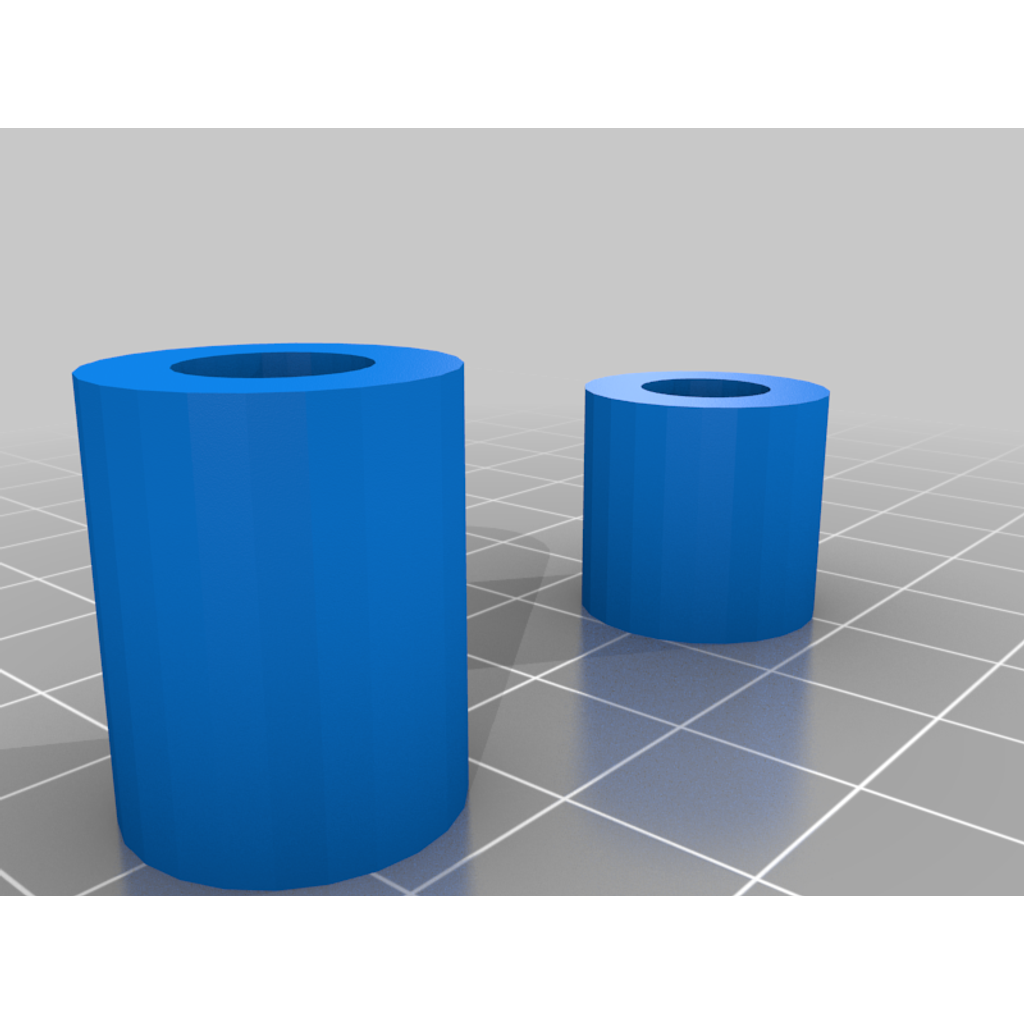

Thanks to Nicolas Chaslot for the measurements of the original sleeve
ID - OD - L:
8.3 - 16 - 20mm
8.3 - 16 - 15mm
You need one of each, so just print the file once.
Printed with 100% infill for stength!
Fitment is perfect!
Made with Thinkercad.
