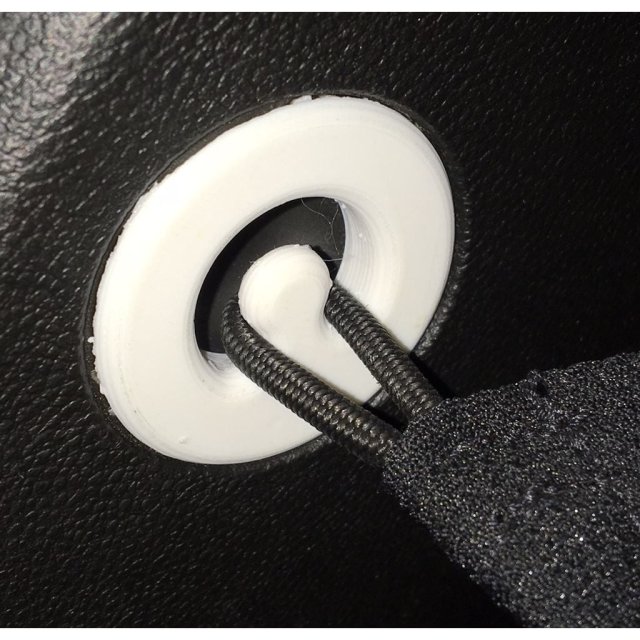

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cargo Cover Hook Clip
Cargo Cover Hook Clip design listed for 2011–2017 Chevrolet Volt. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- Volt
- Year range
- 2011–2017
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
GM's official name for the part is "Cargo Net Retainer Hook Clip OEM 25913048". I believe this part is also used in all models of Chevy Volt (2011-2017), as well as possibly other Chevrolet cars, too.
Uploads include the STL plus the Solidworks model and STEP in case you want to try editing it.
As a bonus, I've added a version without the pocket in the back, the main structural defect that causes it to break in the first place. I believe the pocket is only there so the part can be injection molded, and I left it in the model because I'm a perfectionist. But the unpocketed one is probably less prone to breaking again.
I also made a thread in r/volt on Reddit, check it out for more info and pictures: https://www.reddit.com/r/volt/comments/4zmijq/cargo_cover_hooks_breaking_gen_1_volt/
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
