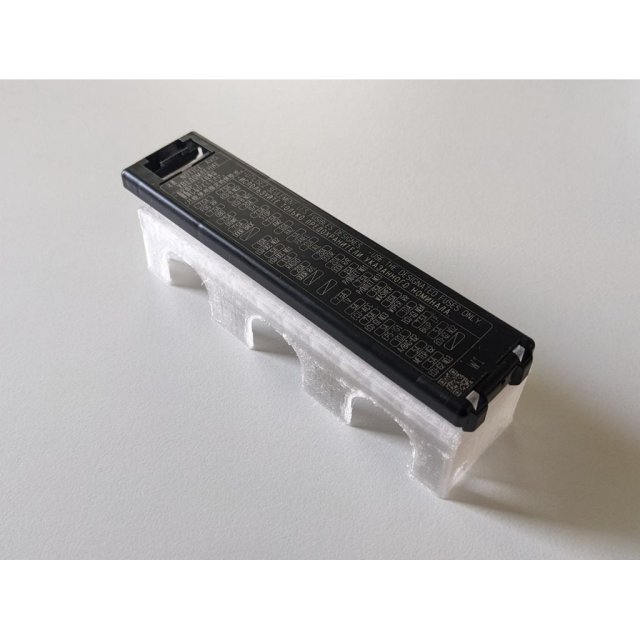

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Fusebox Cover Extender
Fusebox Cover Extender design listed for 2017–2021 Toyota Prius. Listed category: electrical. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Prius
- Year range
- 2017–2021
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Designed for and tested on a Prius Prime 2021 and generic low-profile mini fuse taps, potentially may work across other Toyota vehicles.
The live tab has bridges connecting with the rest of the structure, this improves bed adhesion for what would be otherwise small islands. You can cut these with a knife in a post-processing step. No supports are needed for printing.
FreeCAD .FCStd source is included. It is a spreadsheet-parametric design, so you can adjust dimensions and the rest of the model will update consistently.
Prints done on PETG 0.2mm layers using default settings on a Prusa Mini. A wide brim helps part adhesion, especially as the opening legs have limited surface area. My prints were done using a 4mm brim with 2-loop skirt (3mm offset) that intersects and connects the brim pieces. PLA may result in brittle live tab.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
