Hazard Triangle Compartment Latch
Hazard Triangle Compartment Latch design listed for 2001–2005 Audi A4 Avant. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A4 Avant
- Year range
- 2001–2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

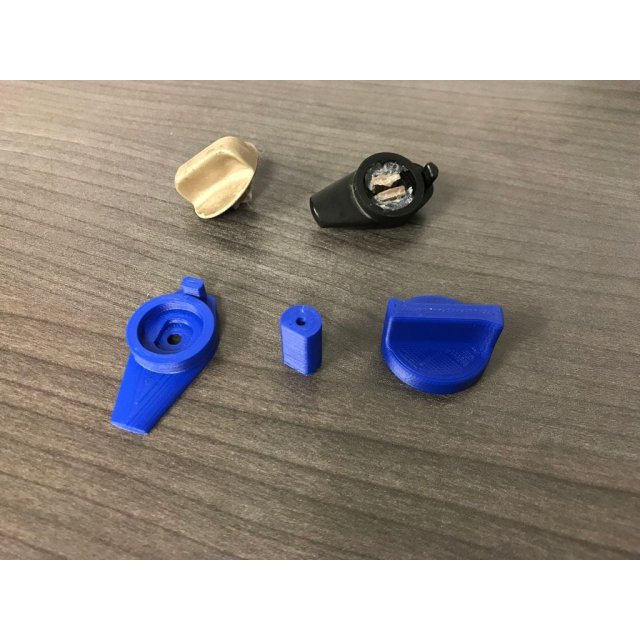

The latch that closes the hazard triangle compartment on my B6 A4 Avant had broken. But unlike others where the catch breaks, the knob on mine broke. It had been previously repaired with glue, so instead of gluing it again only for it fail shortly I decided to use my 3D printer. So I used GrMechEng's assembly which is comprised of three parts, the catch, shaft, and knob. The catch doesn't have a tab like the original Audi part that only allows 90 degree of rotation. However, matthewlaberge's design of the catch does retain this feature. Thankfully, he uploaded the STEP file, so I was able to modify it to accept the shaft from the other design.
Assembly:
1. Apply glue to hole in knob and insert shaft.
2. Slip knob and shaft through hole in Audi cover.
3. Connect catch using a M3 flathead screw, the hole in the shaft is sized appropriately. But if necessary can be drilled out slightly. Done!
Note: Shaft may need to be scaled down slightly to ensure a snug fit.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
