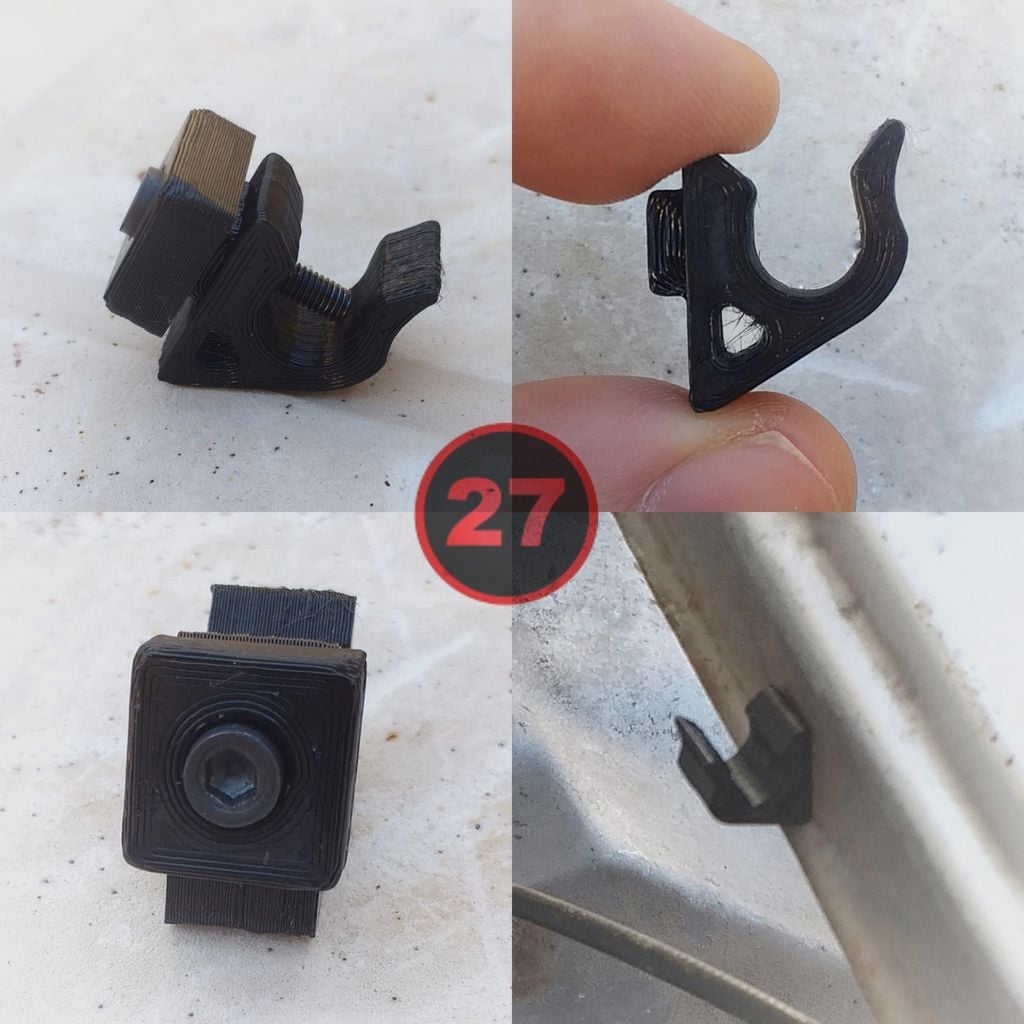

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Bonnet rod retainer clip
Bonnet rod retainer clip design listed for 1962–1982 Ford Cortina. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Cortina
- Year range
- 1962–1982
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
El orificio cenral de la pieza es conico, preparado para tornillo M3, sin necesidad de tuerca abriendo la rosca al atornillarlo por primera vez.
Indispensable imprimirlo con mínimo 3 perímetros, independiente de el porcentaje de relleno. De esta forma las partes criticas de la pieza quedan completamente solidas.
Espero que sea de utilidad, no se olviden de subir fotos si imprimen!
Taunus27
-------------------------------------
I recommend to print the clip sideways for best fleibility/ resistence.
The center hole of the piece is conical, prepared for M3 bolt. No nut needed.
Print it with at least 3 perimeter. Regardless of the infill %. Critical parts remain solid this way.
Hope you enjoy it, please upload your printings!
Taunus27
IG: Taunus_27_
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
