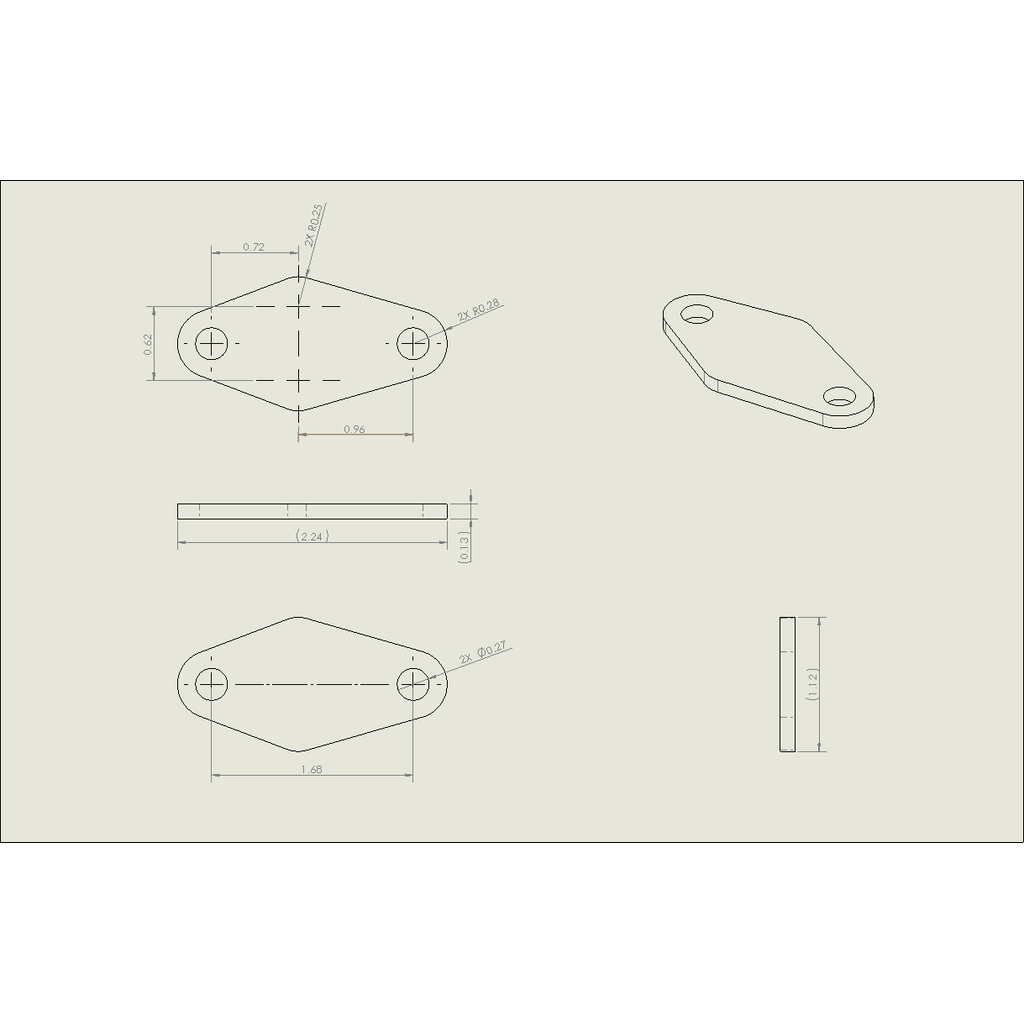

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Secondary Air Pump Block Off Plates
Secondary Air Pump Block Off Plates design listed for 2008–2014 Subaru WRX. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Subaru
- Model
- WRX
- Year range
- 2008–2014
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
The secondary air pump system sometimes rusts and gets stuck open and the valves must be replaced, this is about a $1200 fix for parts and labor from Subaru. So yea eff that just delete the suckers for good.
**************
These plates are for the model years
06-14 WRX
08-20 STI
07-09 Legacy GT / Outback XT
06-13 Forester XT
***************
YOU WILL NEED TO KEEP THE GASKETS AND THE BAROMETRIC PRESSURE SENSOR FROM THE OEM AIR PUMP VALVES. YOU WILL ALSO NEED TO DELETE / TURN OFF CEL CODEDS IN THE ECU, CONSULT A TUNER FOR THE CODES YOU NEED TO TURN OFF!!!!!!
***************
OTHER HARDWARE NEEDED:
2x -- M8-1.25 x 20mm
2x -- M6-1 x 15mm
2x -- M8 washer
2x -- M6 washer
WARNING: if you live in a EPA regulated state where you must pass emissions this will flag you when you go in for emission inspection / inspection itself.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
