Reverse Light LED Support
Reverse Light LED Support design listed for 1998–2004 Ford Focus. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Focus
- Year range
- 1998–2004
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

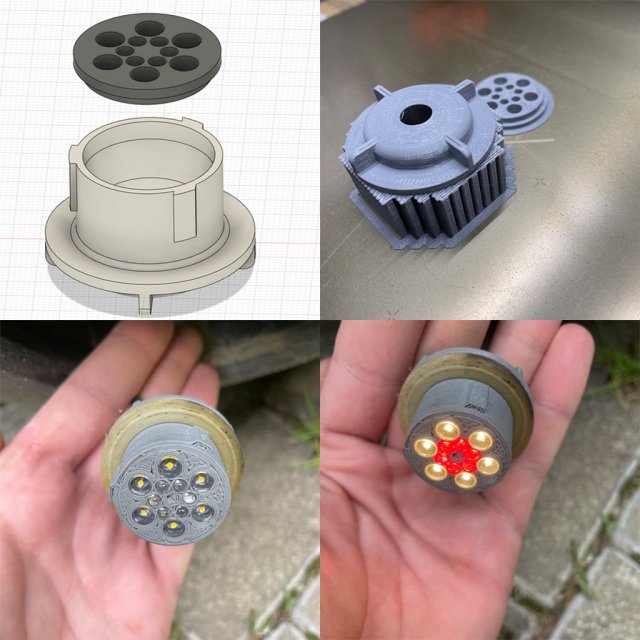

You will need a LHD and RHD reverse light for the Focus, some LEDs, resistors, FLRY wires and a bit of patience. I made it with 6x 5mm LEDs and 6x 3mm LEDs, warm white and red. You can opt for cool white LEDs or even just add more 3mm LEDs. I made a wiring harness out of FLRY automotive grade wire and made all connections inside the vehicle. Overkill, I know.
In my case on the right side I have 2 wire only white LEDs and on the left side 3 wires (GND, Reverse, Fog), 6 big white LEDs and 6 small red 3mm LEDs. Used a label maker to label all wires and spade connectors to be able to rewire it if they say anything at the technical inspection.
Printing:
Use PETG, or even better ABS. Infill should be at least 20% fast honeycomb, but rectilinear works as well. I used grey PETG, but the color doesn't matter.
Social media links:
https://www.instagram.com/n33sworkshop/
https://www.youtube.com/c/N33sWorkshop
You can leave a tip to support my work. Thanks
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
