Wheel Center Cap
Wheel Center Cap design listed for 2001 Jeep Cherokee. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Cherokee
- Year range
- 2001
- Submodel
- Classic
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description

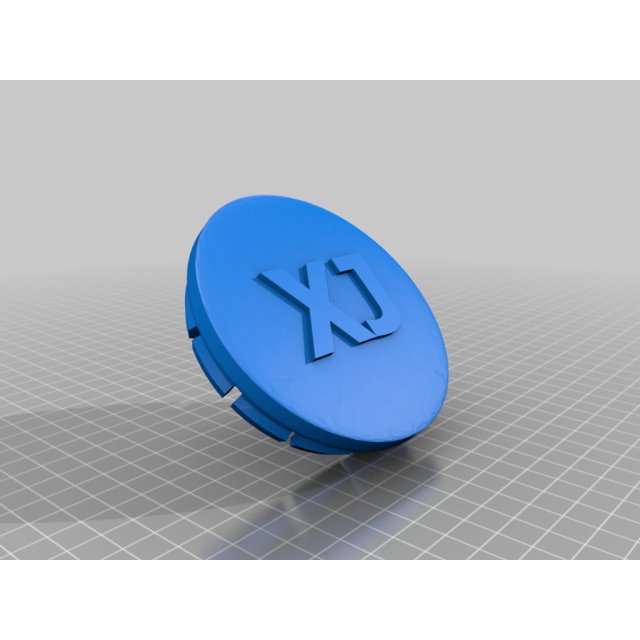

I lost a wheel center cap for my 2001 Jeep Cherokee Classic XJ that has the 16" ICON wheels. nonnux's design, since it's a giant circle, can be resized to fit any wheel center cap. The internal designation code for my Jeep is XJ, so why not put that on the cap instead?
For the 16" ICON wheels, I measured one of my original wheel center caps and it measures 50mm. I used Cura to resize the file to print the correct size. I set the file to print on the 45 degree to get the best surface finish and least post-processing on the face as well as use the least amount of supports. I used tree supports. Also because it's a good mix of having the horizontal layer lines run close to parallel with the "stress" this part might encounter.
I printed my initial file out of PLA for testing the fit, but will print the final versions out of PETG to have better heat resistance.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
