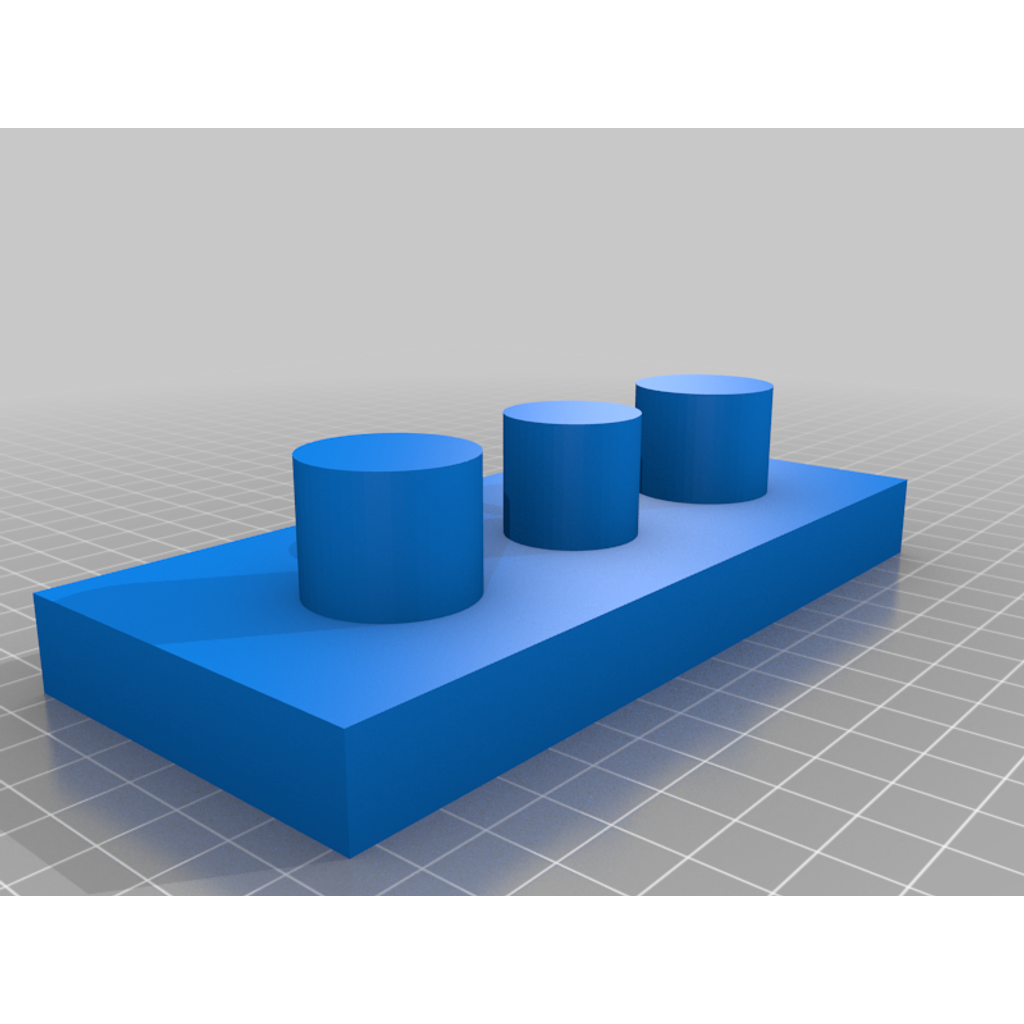

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Jack Pad with captured magnets
Jack Pad with captured magnets design listed for 2012 Tesla Model S/X. Listed category: other. Verify dimensions, fitment and material suitability before printing.
- Make
- Tesla
- Model
- Model S/X
- Year range
- 2012
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I used these magnets:
N35 Strong Round Disc Ring Magnet Rare Earth Neodymium 20mm x 10mm
You'll need 2 per jack pad.
I recommend printing with 100% infill, as you'll need a lot of compression protection when jacking up a 5000lb car. I would not use PLA. PETG or ABS would be your best bet, probably acrylic as well. I haven't tried making a set of these out of TPU, but it might actually work very well... if anyone makes a TPU set, please let me know!
You have to insert the magnets while it's printing after the cavity is printed, but before the 1st layer of the cavity starts... so either pause your printer at the proper layer or be quick like a bunny and drop them in the hole at the right time. Be sure you aren't using a steel or otherwise magnet type heat block or nozzle. You must be using a non-magnetic nozzle, such as a brass nozzle.
I'm including the Inventor file if anyone wants to remix or modify this. Please share any modifications you make!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
