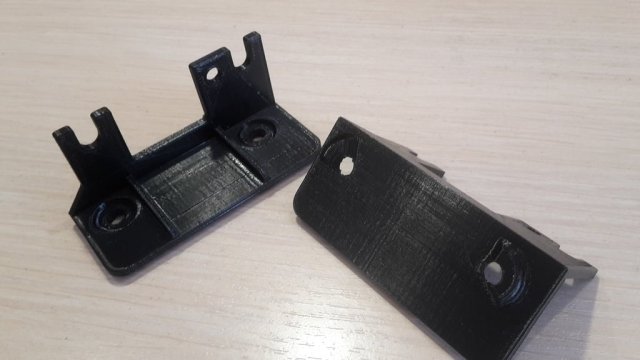

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Double Din Car Audio Unit Mount
Double Din Car Audio Unit Mount design listed for 2004 Kia Cerato. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Kia
- Model
- Cerato
- Year range
- 2004
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
May also fit some other Kia / Hyundai car models.
The mounting is designed for a Chinese Android-based head unit (like one on the picture), which had a "brim", slightly larger than the face panel. Sizes of the mounting are chosen for the "brim" to stay behind the car console, while the front panel to stick out from it. So it may not fit head units of other sizes.
Be wise choosing a material for printing car parts. PLA does not fit for it and can be easily deformed on a heat.
PETG is good and strong enough.
The frame, which appears on the final photo, is [another thing](https://www.thingiverse.com/thing:3146176)
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Brand: TEVO
Printer:
Tarantula Rafts: No Supports: No Resolution: 0.2 Infill: 100% Filament: Bestfilament PETG black
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
