Access Panel Grille Corner Grommet
Access Panel Grille Corner Grommet design listed for 2003 Lotus Elise. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Lotus
- Model
- Elise
- Year range
- 2003
- Submodel
- 111S
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

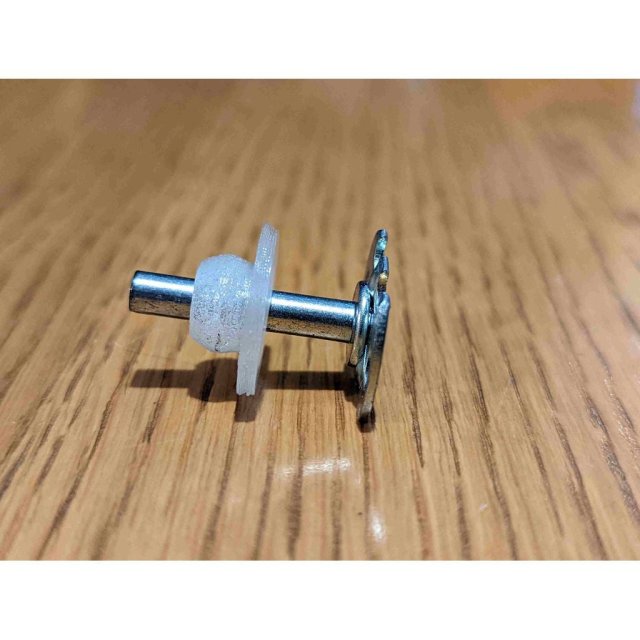

I had a crummy home made grille on my Elise when I bought it which I wanted to replace with the below grilles from Elise Parts however the front corner must be anchored via a metal stud into a factory hole in the fiberglass centre ridge. Normally this hole has a gromit in it but mine were missing so I designed and printed this gromit using flexible TPU filament, it works perfectly on my car.
