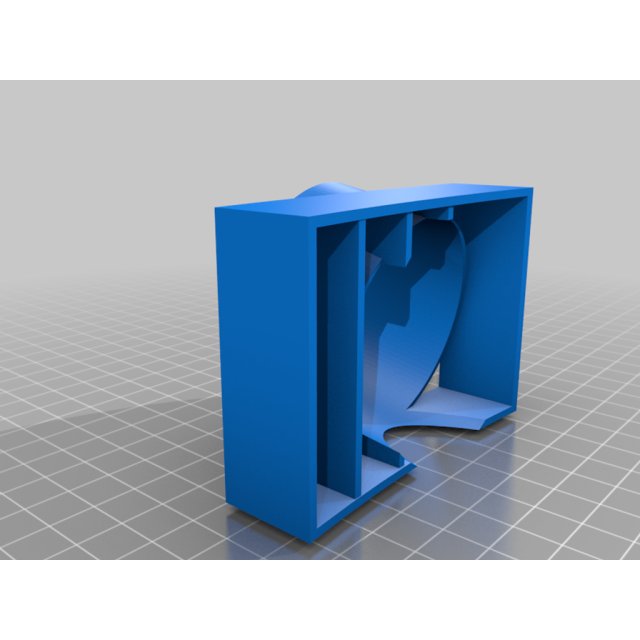

Boost Gauge Vent Mount
Boost Gauge Vent Mount design listed for 2019–2022 Ford Ranger. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Ranger
- Year range
- 2019–2022
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Version 3.0 (This version is angled towards the driver and 4 degrees down for the perfect angle:
As seen on ranger5g.com
52mm gauge fitment
Factory OEM LOOK
Prints on most printers (90mm x 60mm)
Secure fit of your boost gauge retained air flow management (vent still works)
Radiused vents for good air flow and visual look
Vent comes apart very nicely with several tabs. However the inside of the vent will need to be opened up for a 52mm gauge to seat flush. (I used a 2" hole saw in reverse) I just ran the drill inside the mount I printed as a guide. Very little needs to be removed.
Modify as you need, please give me credit for the original design. Thank You
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
