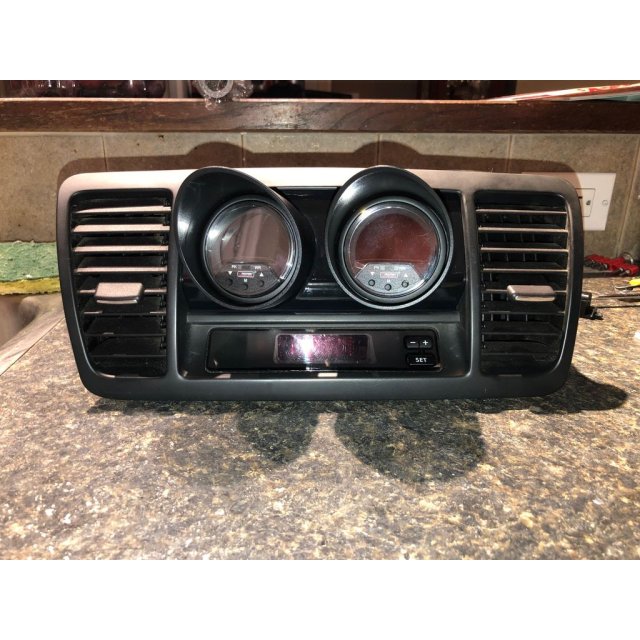

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cubby Gauge Pod
Cubby Gauge Pod design listed for 2007 Subaru Legacy GT / Outback XT. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Subaru
- Model
- Legacy GT / Outback XT
- Year range
- 2007
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I have revised the STL for 52mm gauges as well.
The Gauges have been rotated 15 degrees towards the driver.
I redesigned the Tabs/Legs/Feet to better fit the dash. At least for my 2007 they now fit perfect. These are designed to slip over the existing posts. There is 1.75mm of smaller diameter to hold it to the post which is the same thickness as the factory cubby tabs. The tops are slotted exactly how the factory vents are constructed to fit perfectly in the original location. The lower tab has been shortened to better fit the location of the tab on the back of the clock. I also thickened the tab that inserts into the back of the body for a tighter fit. This may be year specific so please confirm with your own dash. You can use the factory screws to hold it all back in place.
A huge thanks goes out to the original designer which saved me a lot of time in design.
I used 3x10 countersunk screws to hold the tabs to the body.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
