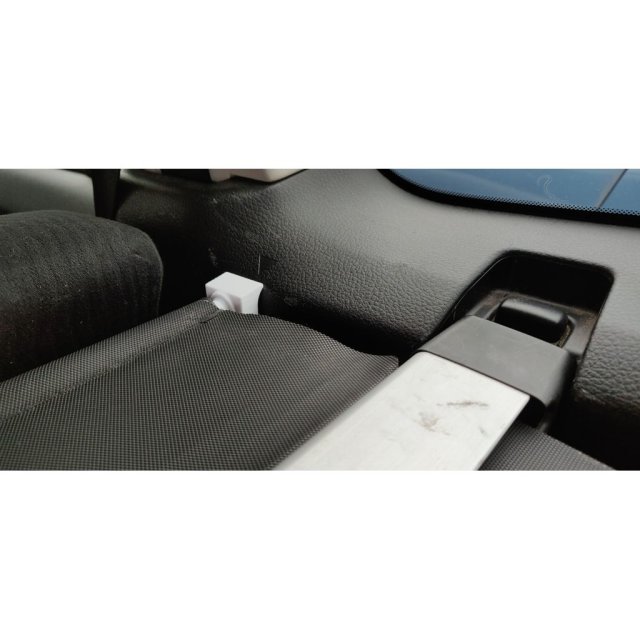

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Trunk Cover Support Peg
Trunk Cover Support Peg design listed for 2011 Subaru Legacy Outback. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Subaru
- Model
- Legacy Outback
- Year range
- 2011
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The shape is the same on the opposite side except the shaft would be different (larger diameter, no clips on the side and would need a locating rib on the top. If you need one of those, feel free to take the rest of the geometry from this file.
Tested on a European Outback 2011 2.0D (diesel engine) model. I assume it is the same across all variants of the same year at least though.
This is also uploaded on PrusaPrinters at https://www.prusaprinters.org/prints/86577-subaru-legacy-outback-2011-4th-gen-trunk-cover-sup
## Notes on the source file
The source file is attached. It uses FreeCAD Link branch daily (downloads from https://github.com/realthunder/FreeCAD_assembly3). The file will not work on FreeCAD 0.19.
As an alternative for users working in other CAD software, a STEP file is also provided. A 3MF file is provided with the slicer settings I used in PrusaSlicer.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
