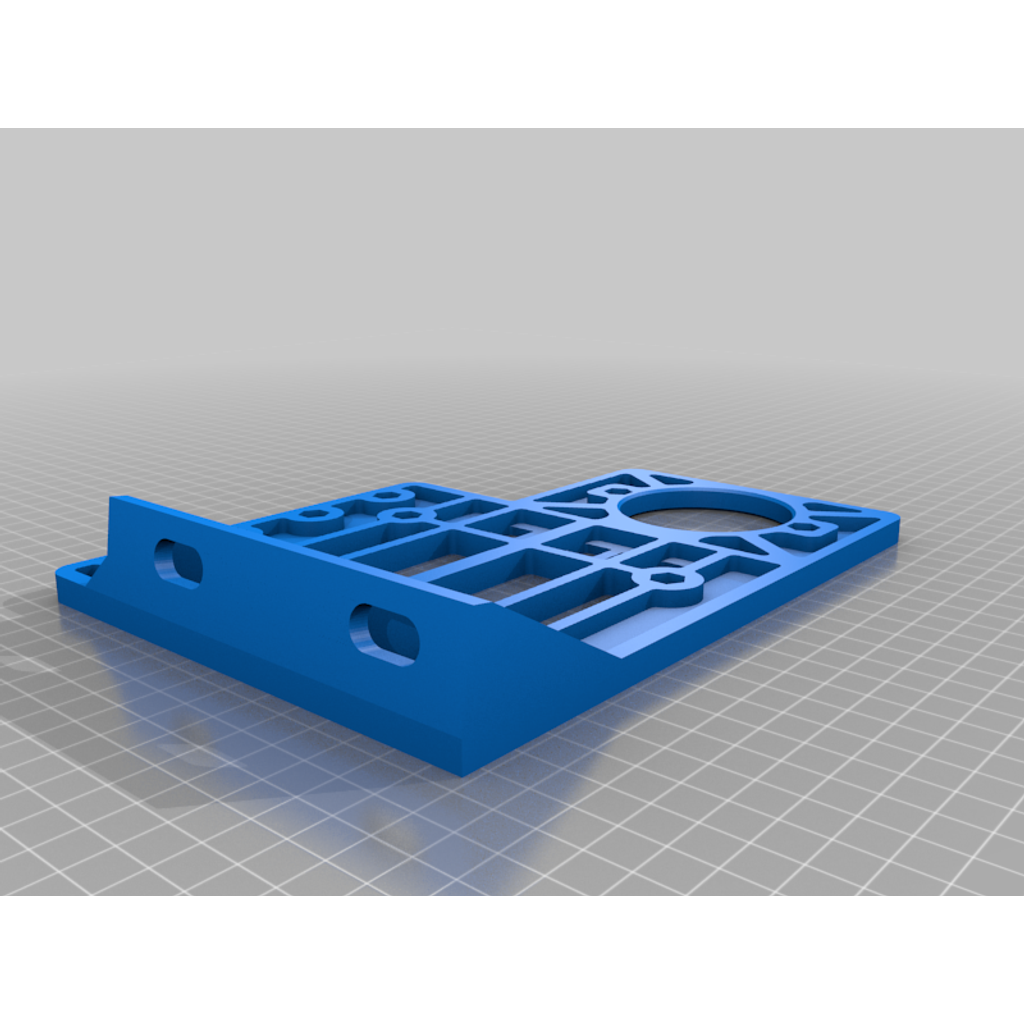

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Blue Sea Systems Fuse Block and Circuit Breaker Mount
Blue Sea Systems Fuse Block and Circuit Breaker Mount design listed for 2016–2023 Toyota Tacoma. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Tacoma
- Year range
- 2016–2023
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
MUST be printed with ABS or other filament capable of withstanding high heat emitted from the engine!
My print settings on MK3S+:
Printed with Inland ABS @ 260c nozzle / 105c bed on LT-11 satin sheet
.6mm nozzle
.35 layer height
5 perimeters
.85 extrusion width
15% infill
Additional holes for mounting up to 4 relays.
M5 bolts/washers/nuts are necessary to mount fuse block and circuit breaker to the bracket.
Attaches to the two open bolt holes on the right side of the engine bay (when viewing from the front of the truck) just above the fuse box.
I will add photos of the installed bracket and how it all looks once I finish wiring a few more things.
Will include the 3MF and F3D files for anyone who may wish to modify it to fix other similar fuse boxes/circuit breakers.
