Rigid Hatch Stops
Rigid Hatch Stops design listed for 2022 Tesla Model Y. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Tesla
- Model
- Model Y
- Year range
- 2022
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
After some research, I realized this problem is systemic to a lot of Model S and Model Y models because of slight movement of the rear hatch.
After calibrating my rubber hatch stops with the "envelope trick" (https://www.youtube.com/watch?v=Z4fYt06sfN0), it didn't remove the issue completely.
There was some discussion on Tesla Motor Club forums about making the two hatch stops more rigid to prevent any flex.

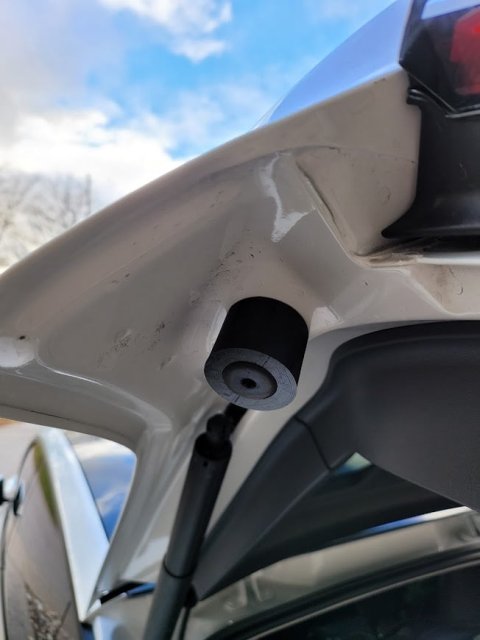

Therefore I created these slip-on rigid hatch stops. They are a tight fit (I recommend printing with a 0.4mm nozzle)- if you adjust the size, you'll probably only want to do it by 0.5%
There are several sizes depending on the depth of your rubber stop. I have marked the measurements of various STLs in 0.5mm increments so you can see what size fits best. Either sides of my vehicle's hatch stops were not equal in depth.
Also attached is a parametric Fusion 360 file if you'd like to make subtle adjustments in any parameters.
I haven't done a spectrum analysis with my phone yet, but I do feel that it has improved.
Original Tinkercad is available here:
https://www.tinkercad.com/things/jjZ1nsBbhmq
UPDATE Jan 13/2022:
If you are experiencing still further booming issues and would like a different approach, also please see this modification here https://teslamotorsclub.com/tmc/posts/6314645/
