Ashtray Tablet Stand
Ashtray Tablet Stand design listed for 2005 Toyota Corolla. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Corolla
- Year range
- 2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I made this specially for my toyota corolla 2005.

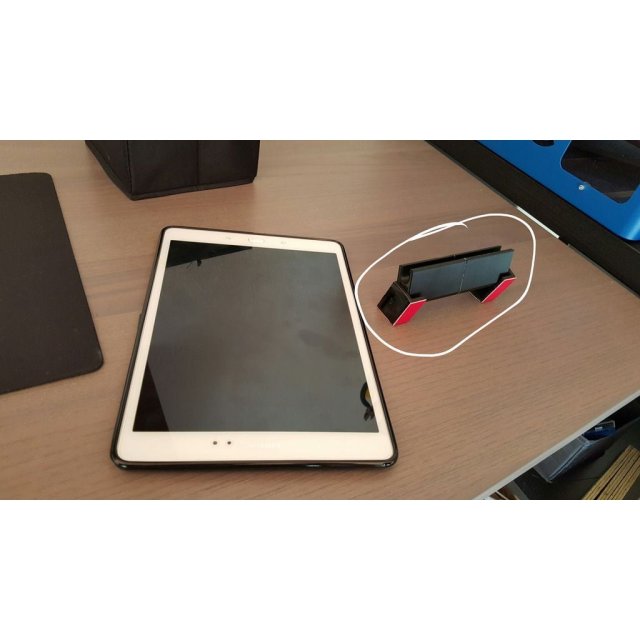

Tested with Samsung Galaxy Tab A. Should work with many other tablets as well. Galaxy Tab A with a silicone cover and glass screen protector is light pressure fitted, so it doesn't slide out.
--------------------------------------------------------------------------------------------------------------------------
Recommended print settings:
Printed in ABS, perhaps it works for PLA too, not sure.
Mirror each piece in your slicer, print in same orientation as shown in the video for best result.
I recommend a brim, heated bed 100C nozzle 235C - or whatever your filament prints best with. Along with kapton tape and ABS juice. Works perfectly for me.
-------------------------------------------------------------------------------------------------------------------------
Install instructions:
The file named "Tablet Holder - Holder" should be fused together by applying acetone to the surface that made contact with the buildplate during printing, then press the two pieces together with your hands, while also pressing it up against a table that isn't bumpy. - this will make sure the two pieces align properly. After a minute or two doing this you can release the two pieces and let the acetone dry and fuse the two pieces together.
For final application apply "No more nails 120kg double sided tape" or similar, to the two pieces named "Skinne" you should be able to make out how I applied it from one of the pictures. Then make sure it is inserted and applied correctly into the ashtray, it should not be too high, or else the tray won't close. You'll know what I mean.
Also take note that the tray may open during a bit of acceleration when driving, simple fix is add a tiny piece of "no more nails" to the ashtray piece that prevent the tray from falling out. You can see the tiny piece in the video just as I open the tray, it's red.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
