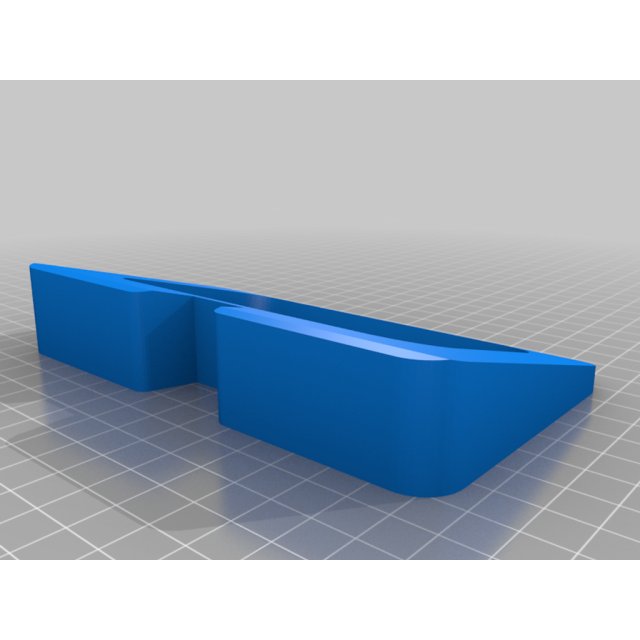

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Auxbeam Switch Panel Sunglasses Compartment Mount
Auxbeam Switch Panel Sunglasses Compartment Mount design listed for 2003–2009 Toyota 4Runner. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- 4Runner
- Year range
- 2003–2009
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Taking out the A-pillar trim:
pop out the two covers on the a-pillar handle with a flathead screwdriver or thin pry tool and remove the two bolts holding the handle on. Then peel back the door seal where it contacts the a pillar trim, and lift the a pillar trim towards the center of the car (up and back) to take it out. Follow the factory wiring up the a-pillar.
Taking out the sunglasses holder:
The part of the dome light trim closest tot he windshield (where it meets the headliner) is held in to the roof with two metal clips that will come out if pulled straight down, and once released, the whole unit will be able to slide forwards toward the windshield to come down from the roof. Unplug the dome light plug and it will be free. You can run the controller wire through the headliner to that big hole in the roof. The only modifications you need to make to the sunglasses holder is drilling a hole in the black plastic cup in the back for the wire to go through (i think its a little under a half inch) and cutting the front lip of the sunglasses compartment to be flat and flush with the top of the nosepiece holder. Once i did this, i hit it with a torch to hide any scratch marks and imperfections. This step really gives it an OE style texture.
I would suggest printing this part in black petg or pla. I have white here to show you the product.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
