Cargo Cover Button Linkage and Eject Block
Cargo Cover Button Linkage and Eject Block design listed for 1998–2004 Audi A6. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A6
- Year range
- 1998–2004
- Submodel
- Avant / Allroad / S6 / RS6
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Here are 2 commonly lost interior parts for the right (button side) that you can 3d print.
NOTE:

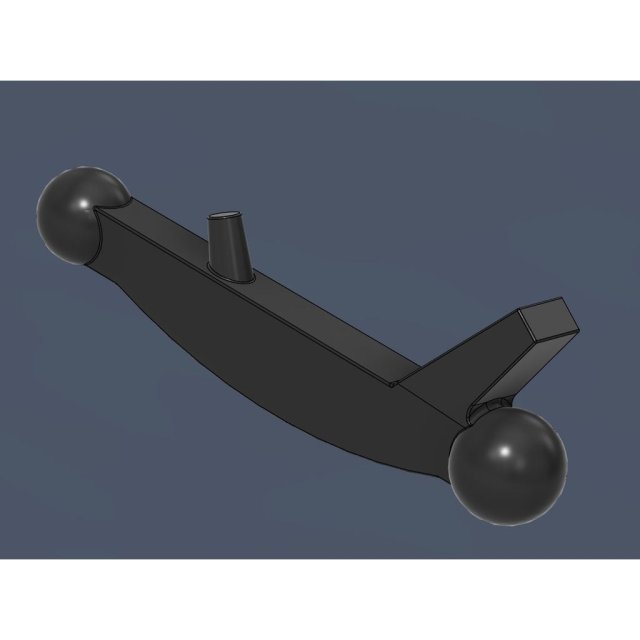

1. The linkage should be made from something structurally rigid, as it is subject to high compression forces. Finished print should measure 34.5mm L x 13mm H x 3.5 W (the angled rectangular portion). The ball ends should be 6mm and 5mm respectively. A "close enough" return spring can be sourced from McMaster-Carr p/n 8969T122.
2. The eject block finished print should measure 14.75mm L x 15.5mm W x 15.25mm H with a 10.5mm diameter hole. The closest approximation to the spring for this part needs to be cut to length (30mm with ends bent/flattened so they are parallel) from McMaster-Carr p/n 96565K32.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
