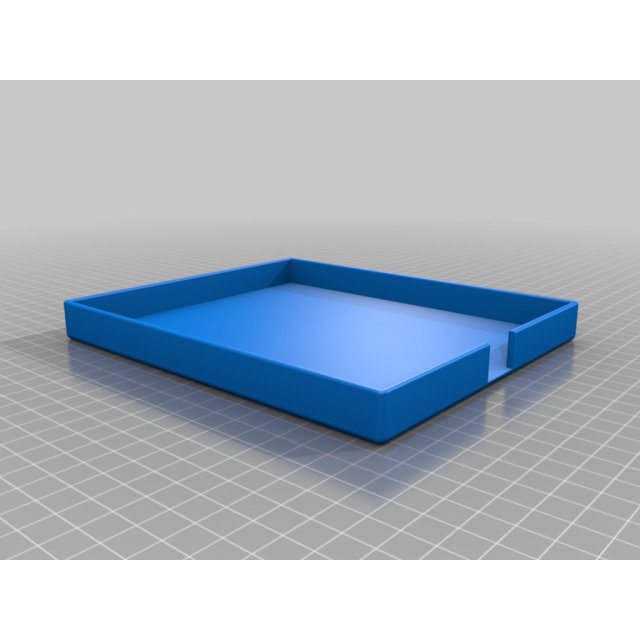

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Console Phone Tray
Console Phone Tray design listed for 2018 Lexus NX. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Lexus
- Model
- NX
- Year range
- 2018
- Submodel
- 300h
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The tray in the consol of my 2018 Lexus NX300h is not much use for supporting a phone. I wanted something that would support the phone and not put a strain on the USB wire. I use my phone with Android Auto which displays GPS data on the car screen.
The tray works for my OnePlus 7Pro phone
The shelf needs side supports to sit on ledges inside the console. I didnt know how it create those with Freecad so I created the tray and also two side supports to superglue to the side of the tray. Check it fits your car by taping the side supports to the top. These fitted my car. The tape also helped keep the sides in place while I superglued them.
I stuck a layer of felt on the base with double sided tape.It works for me and I hope you find it useful
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
