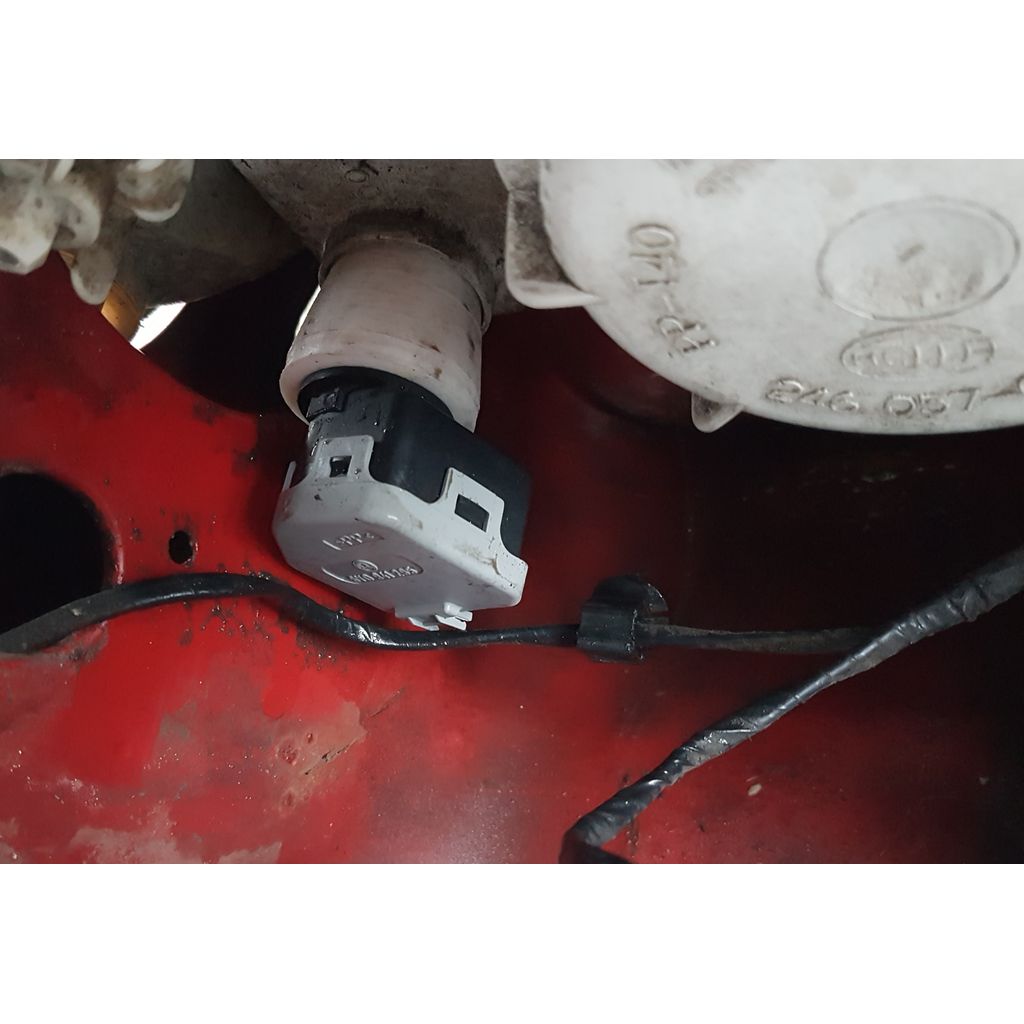

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Headlight Adjuster Motor Adapter
Headlight Adjuster Motor Adapter design listed for 1994–2001 Skoda Felicia. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Skoda
- Model
- Felicia
- Year range
- 1994–2001
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The Skoda Felicia came fitted with hydraulic headlight adjusters from the factory. These are notoriously bad for failing. As there's now a requirement to have operational headlight adjusters from inside the cabin in the UK after the May 2018 MOT changes, my car failed it's MOT and was taken off the road.
Since parts for the Felicia are hard to get in the UK now, I decided to replace my failed hydraulic units with electric motors like modern cars have.
This model is the result. It's an adapter that fits into the Skoda Felicia headlight adjuster hole in the headlight housing, and a Skoda Fabia mark 1 headlight adjuster motor can engage with it and lock into place.
an M4 bolt was inserted into the end of the headlight adjuster motor (with precision and patience it is possible to do this free hand with a good tapper set and screw driver).
Obviously, you still need to wire up the electronic motor and get a variable resistor to make it all work. I ended up using a switch from a Seat Leon.
It's rough and ready as I'm not an expert in this! I've included the openSCAD files for anyone wanting to make a better revision. Creative commons with attribution license.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
