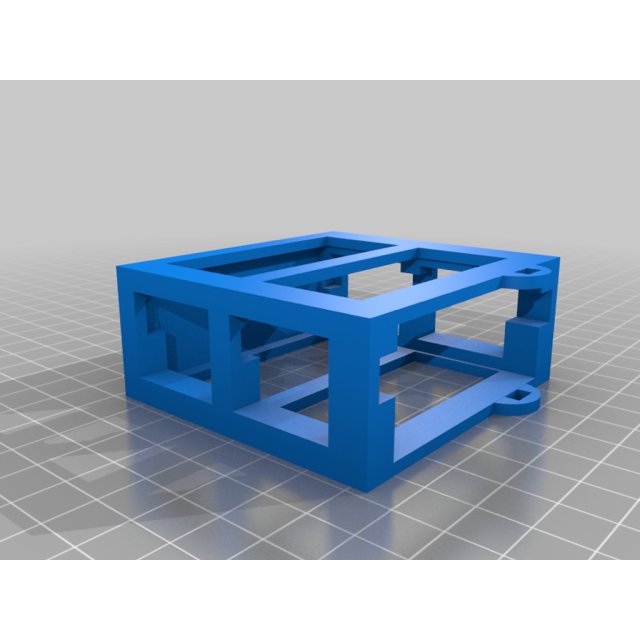

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
HomeLink Bracket
HomeLink Bracket design listed for 2023 Tesla Model Y. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Tesla
- Model
- Model Y
- Year range
- 2023
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
1) Changed mounting position to more closely align with the actual Tesla bracket (from pmlody’s design https://www.printables.com/model/382187-tesla-3-homelink-bracket)
2) Reduced much of the bulk from original design to reduce signal interference
3) Tuned up a few of the joints to add stability
4) Added holes to accommodate a zip tie to help secure the module into the bracket (don't over-tighten the zip tie!)
Reference this video for the step-by-step process (module part number and bolt size included in the video description).
https://youtu.be/6_5_g_Wc75A
Installation and configuration took me only about 20 min total, and did NOT require a Tesla technician. YMMV.
Print settings:
Supports enabled
55% infill
PETG filament to increase durability and heat tolerance
.20 resolution
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
