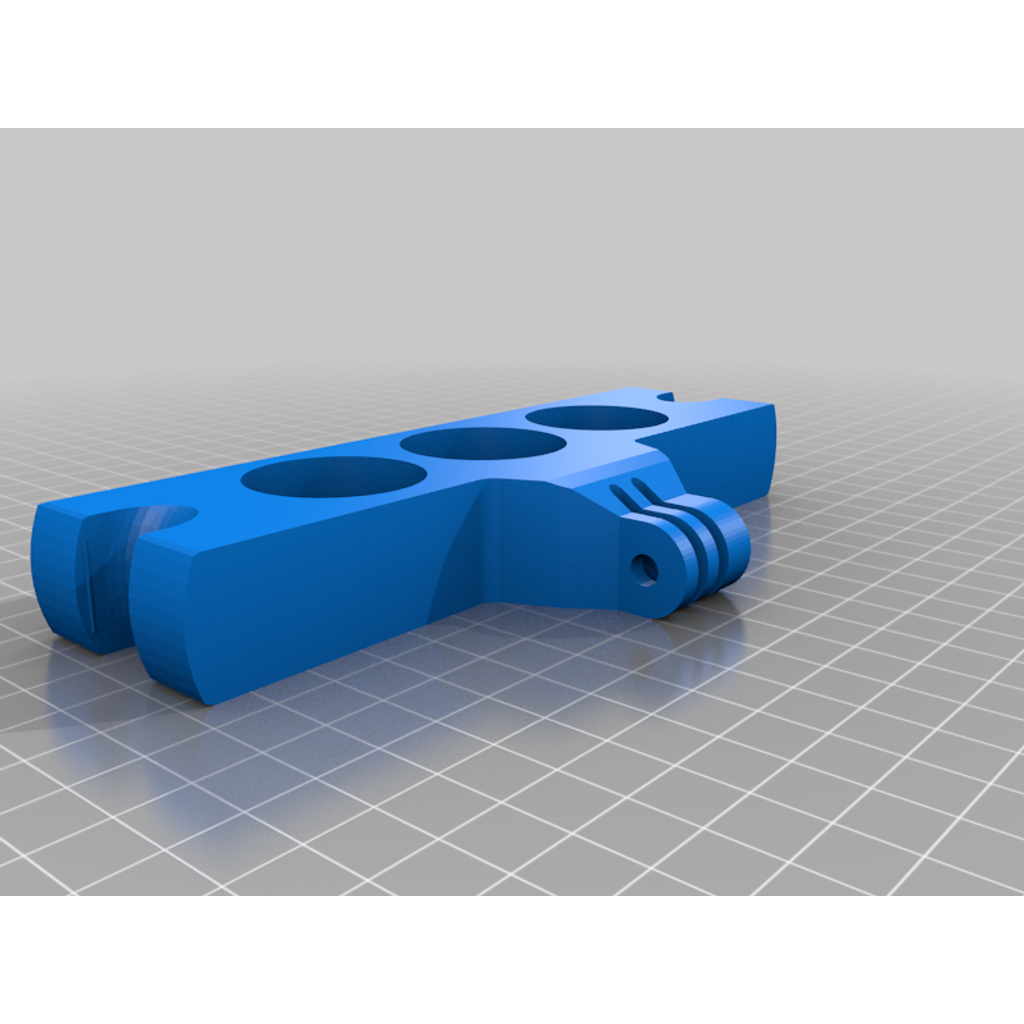

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
GR Corolla Action Camera Headrest Mounts
GR Corolla Action Camera Headrest Mounts design listed for 1999 Toyota Yaris. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Yaris
- Year range
- 1999
- Submodel
- GR Yaris/Corolla
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
- Two Mount Designs: 'The Stubby' and 'The Long John'
- Centered the Action camera mount.
- Spaced the Action camera mount away from the seat some more to allow direct camera mounting. Widened and smoothed neck of spacer portion.
- Enlarged the captive nut space a few fractions of a millimeter to accept GoPro acorn style nuts.
- Deepened the gussets of the GoPro mount to allow 90 degree mounting angles with various action cams. (GoPro, DJI Osmo Action 3/4, Insta360 Ace/Ace Pro)
- Added Tether Point (On The Long John only - Vertical Hole in mount arm)
Can be used with Tether Straps from [AliExpress](https://www.aliexpress.com/item/1005003827159767.html?spm=a2g0o.detail.pcDetailTopMoreOtherSeller.3.7e28U032U032Io&gps-id=pcDetailTopMoreOtherSeller&scm=1007.40050.354490.0&scm_id=1007.40050.354490.0&scm-url=1007.40050.354490.0&pvid=ca679fef-2b3c-4e9f-9d1c-6918b873d9ef&_t=gps-id:pcDetailTopMoreOtherSeller,scm-url:1007.40050.354490.0,pvid:ca679fef-2b3c-4e9f-9d1c-6918b873d9ef,tpp_buckets:668%232846%238116%232002&utparam-url=scene%3ApcDetailTopMoreOtherSeller%7Cquery_from%3A), or make your own.
- Added a center hole to the main body to reduce material and unnecessary print time
(Also pays homage to the GR Yaris/Corolla 3Cyl GA16-GTS Engine).
- Shaved logos and text to reduce print time.
- Slimmed down the main body of the mount.
- General tidy up of the design for a nicer quality part.
#### Important Notes:
- This mount is printed upside down for ease of printing, Ensure you mount the right way up so it does not foul incorrectly on the seat.
I am happy to make additional refinements based on community input and real world use.
..
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
