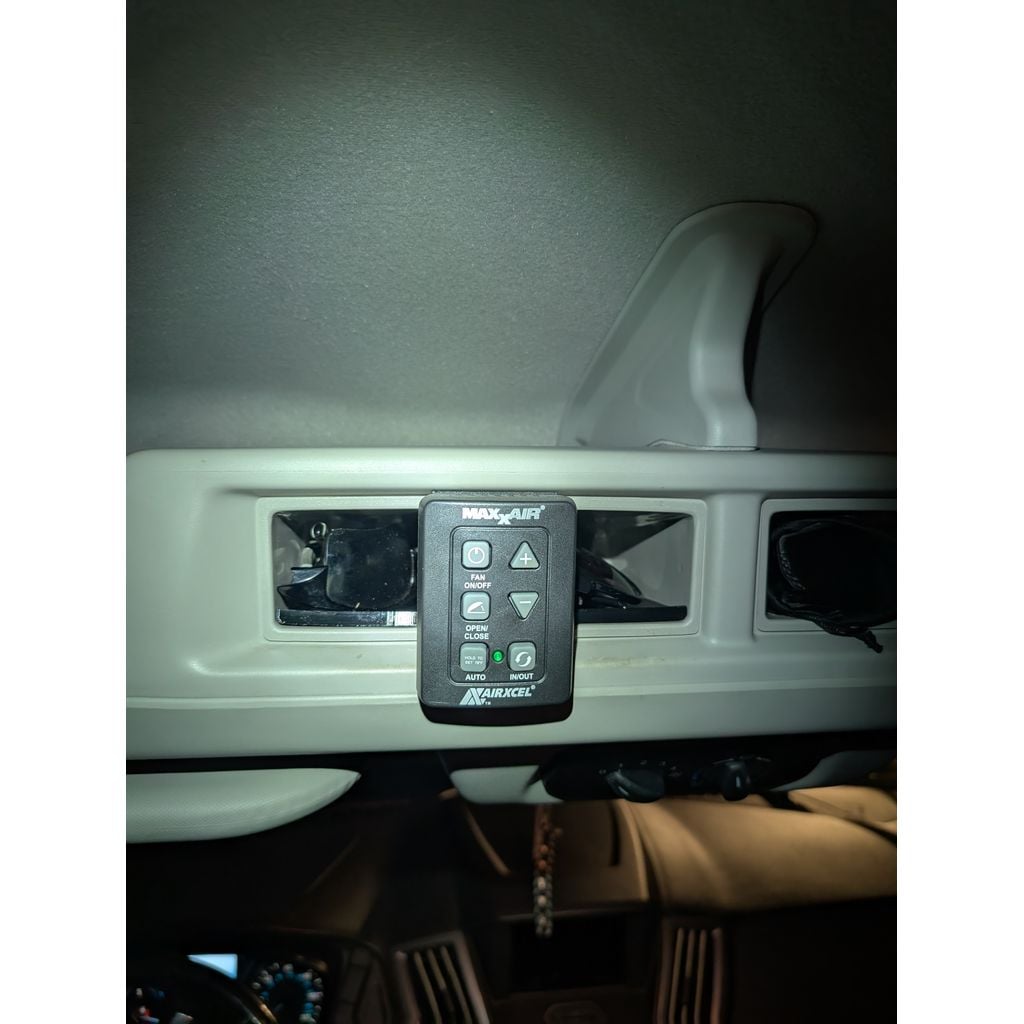

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Maxxair 6-button switch mount
Maxxair 6-button switch mount design listed for 1965–2026 Ford Transit. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Transit
- Year range
- 1965–2026
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
You need to use the dedicated (MA69FR) Ethernet cable made for the fan. A regular Cat6 cable end won't fit in the Maxxair fan control box it too big. Run the cable above the headliners. The most challenging part was routing the cable around the curved cabin headliner without removing the entire thing. I only had to remove a few screws on the passenger step-in handle and sun visor to reach my arm down in the front to fish it through the hole you drilled into the cubby compartment.
Where to order the parts.
https://www.etrailer.com/Accessories-and-Parts/MAXXAIR/MA59FR.html
https://www.etrailer.com/p-MA69FR.html
Print the switch mount in PLA or PLA+ with a 10% infill standing up with no supports. The Cubby fill pad was made with TPU.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
