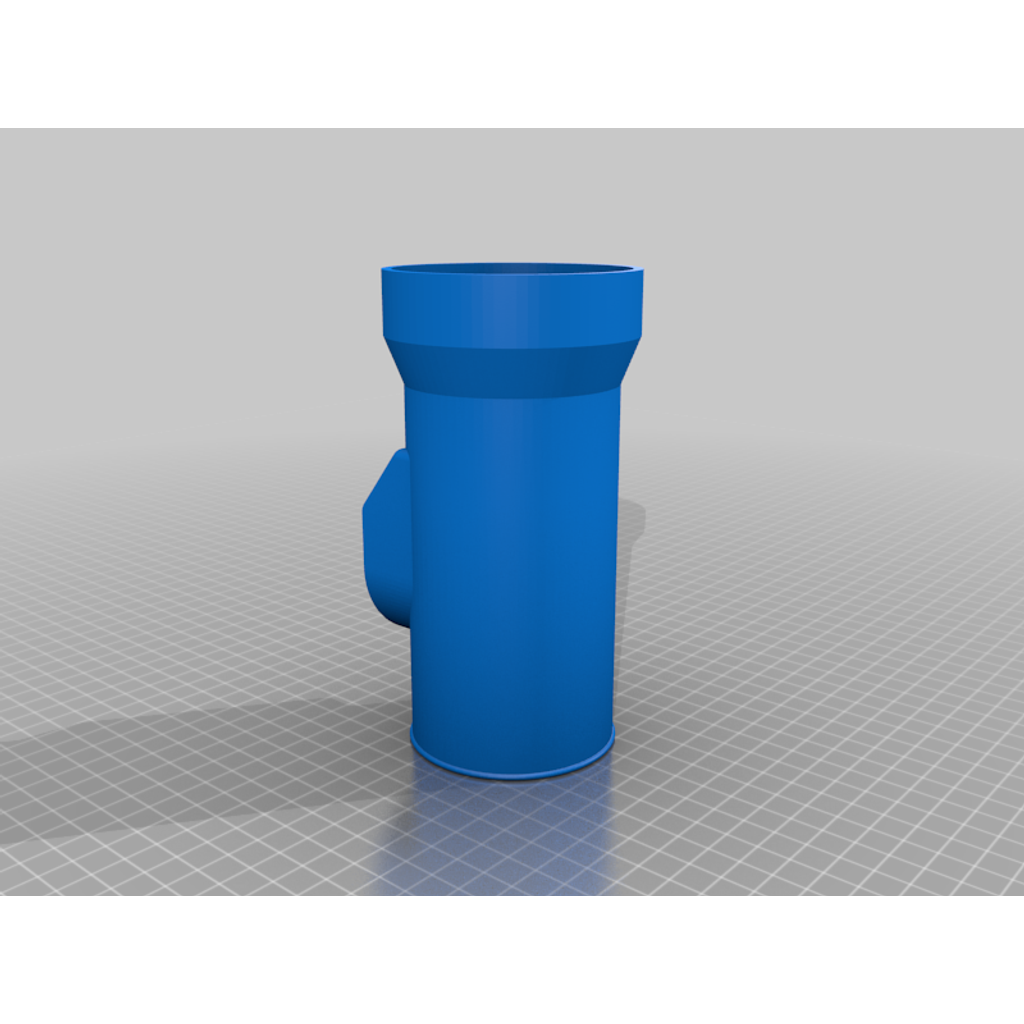

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Intake tube adapter
Intake tube adapter design listed for 2006–2015 Mazda MX-5 Miata. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 2006–2015
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
It's designed to be printed wide side flat on the bed with a brim and no support, 100% infill. I used PETG and it holds for now but ABS would probably be better.
I noticed an improve in low end torque and it made the car slightly smoother which was a surprise for sure, but a welcome one.I don't know if that's due to better air flow (I higly doubt that) or because I messed up the measurements and now the MAF sensor is misplaced so the ECU is tricked in a bad way (which is a lot more likely).
The outside diameter for the filter is 80mm because I had a 80mm filter laying arround. I then crafted a support in my cave with a bunch of scraps. If it looks stupid but it works it ain't stupid right ?
With the top down, the engine sounds beter with a lower tone for the intake sound, not a big difference but good enough for what it costs.
