GPS and TPMS Display Mount
GPS and TPMS Display Mount design listed for 2020 RAM 2500/3500. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- RAM
- Model
- 2500/3500
- Year range
- 2020
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Update: 12//7/2020, v13
Cleaned up the HR Richter tab sizing to match the TST 507.
More work to do: The foot that keeps the mount from "falling" away from the dash needs to be extended and rotated; the HR Richter tab needs to be rotated and lowered. But close.
Update 12/12/2020, v15
Good design, could use more upper strength (the Garmin RV 890 GPS is pretty heavy). Thinking about adding a better lower support to keep it from waving, and starting the transition faster from where it is held by the tablet holder on the truck to get it out of the way of the USB ports. But usable. The weird shape makes support a requirement, and the HR Richter tabs are sometimes touchy when printing and removing support material.
Update 2/13/2021, v17

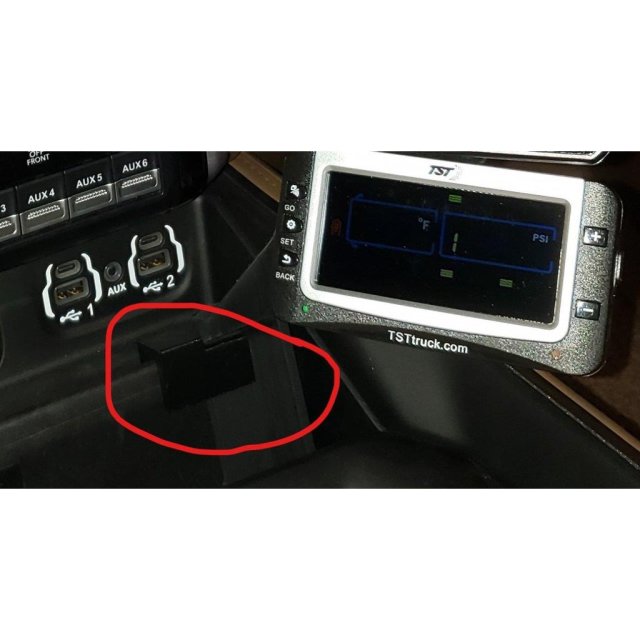

A bit stiffer, with better support. Added a "lock clip" that clips the base of the GPS mount to the rubber wall under the USB ports, gives the mount a lot more stability. It still wobbles a bit, the GPS is still heavy.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
