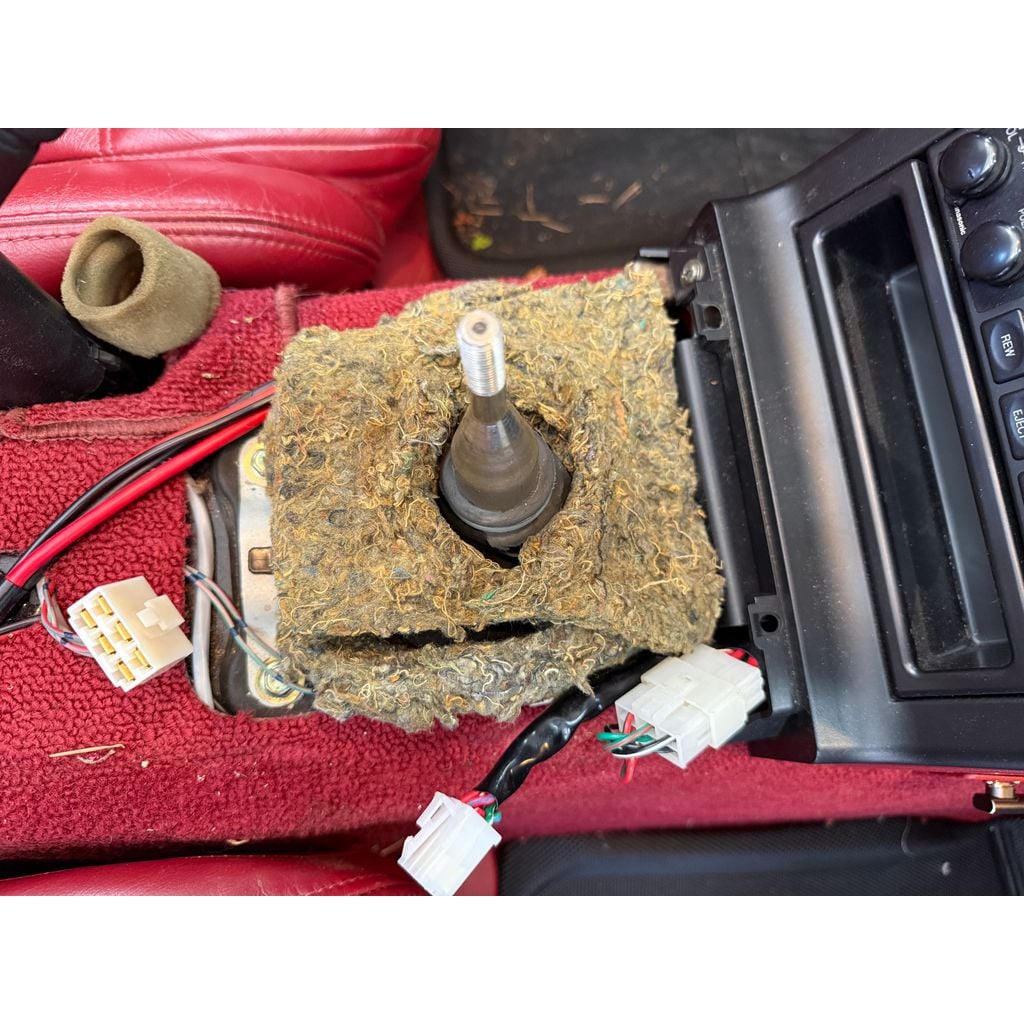

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Window Relay Holder
Window Relay Holder design listed for 1990–1997 Mazda Miata. Listed category: electrical. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- Miata
- Year range
- 1990–1997
- Submodel
- MX-5
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Note that there are two of them here. One covers the wires at the back of the relay sockets and the other does not.
I harvested the wires and connector from a used window switch. This is the connector that I used on the other end: https://mikesmiataparts.com/products/ignition-switch-wiring-repair-plug-reproduction-new-1990-1997-na-mazda-miata?_pos=1&_sid=5c3307b23&_ss=r
I used this relay: https://www.summitracing.com/parts/BCH-0332201107
This Relay Socket: https://www.summitracing.com/parts/HLA-H84702001
These 2 sizes of Terminals for the Sockets: https://ceautoelectricsupply.com/product/terminals-for-standard-relay-sockets/
https://ceautoelectricsupply.com/product/terminals-for-interlocking-micro-relay-socket/
https://forum.miata.net/vb/showthread.php?p=11290501#post11290501
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
