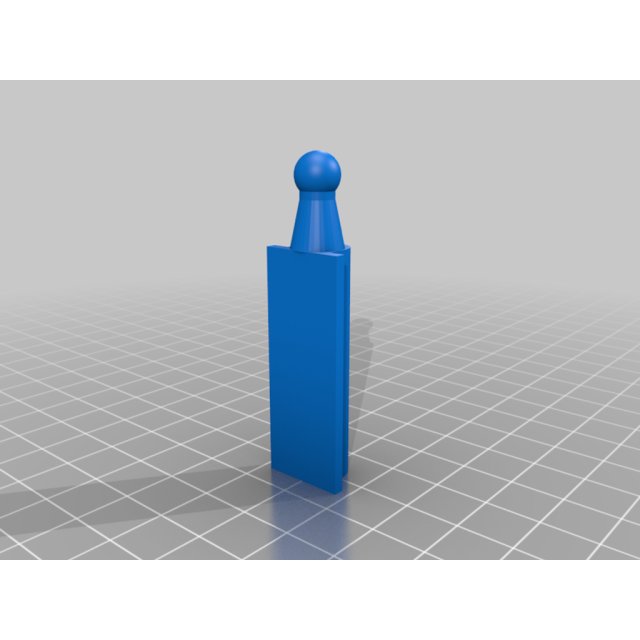

Headlamp Adjuster
Headlamp Adjuster design listed for 1996–2000 BMW 5 Series. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- BMW
- Model
- 5 Series
- Year range
- 1996–2000
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
BMWs own solution is to supply new lamps as complete units, price probably approaching $1000.
To fix, you need to take the headlamp units apart, which is actually quite easy. There are various instructions on the net, The two manual adjusters simply fully unscrew to release. The third adjuster, connected to a motor, is released by turning the exposed 5mm plastic nut 90 degrees (not all variants have this feature). One word of warning: Do not touch the reflectors, they are very easily destroyed by attempts of cleaning.
You need one of each of these per side. They will work for the early halogen units, but may need modification for "angel eyes", and I have no idea about Xenon. Note also that the shape is different from the originals. I believe these may be slightly better - the originals were limited by what you could do with casting.
For best strength you should ideally print them laying down, but then some support is needed.
They will print fine standing up, but then they will not be as strong. The diameter and shape of the top ball is quite critical to get a suitably tight fit. Use a really healthy shell thickness and good infill, for strength.
ABS and ASA are probably good choices for material. PLA is easy, but is not as heat resistant and may degrade over time, and be a bit too brittle. PETG may also work. Probably Nylon would be good too.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
