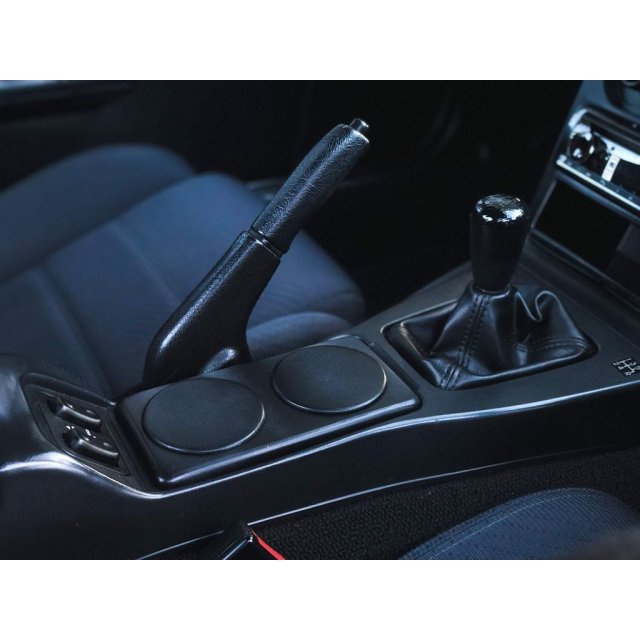

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cup Holder
Cup Holder design listed for 1989–1997 Mazda MX-5 Miata. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 1989–1997
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
You pull up to your local Cars & Coffee event. Everyone is in awe at your beautiful car. But there's one problem. You've lost your factory OEM cupholders, or if you're like me, live in a market where cupholders were never even an option. How are you supposed to go to Cars and Coffee with nowhere to put your coffee?! The factory ashtray is less than useful for storing coffee, or anything besides ash for that matter.
Here's my solution to this frustrating issue.
I've designed this from the ground up, taking inspiration from @bbeavis' version but starting from the ground up. This cup holder clips in perfectly, and doesn't rattle around AT ALL.
The cap inserts slot in nicely, and don't rattle either. Just the perfect amount of friction to stop them moving, but you can get your nail under the cap easily to pull it up.
I've designed this cup holder with 75mm diameter holes specifically for my 8oz KeepCup (no affiliation, but they are fantastic). At some point I'll add an insert to better hold a Red Bull can, and if there's interest I'm happy to add other versions with different diameter cup holes too.
Recommend printing in PETG/ABS and sanding & painting to give an OEM finish. The flat black Duplicolor Vinyl & Fabric spray cans are what I used and are near a perfect match to the OEM finish.
Designed to print both the cap and the body with no supports. Print face down.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
