Center Vent Gauge Pod
Center Vent Gauge Pod design listed for 1990–2000 BMW 3 Series. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- BMW
- Model
- 3 Series
- Year range
- 1990–2000
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
8/14/2024: 3x52 has also received durability updates.
8/15/2024: ventOnly, blank, 1x52, and 1x60 have all received durability updates. 2x60 is the only one that has not. If someone comes across this and needs a 2x60 I'll update it, but for now I'm done updating this.
Replacement center vent for BMW e36 in the following configurations:
- Blank plate
- Vent only
- 1 52mm gauge
- 2 52mm gauges
- 3 52mm gauges
- 1 60mm gauge
- 2 60mm gauges

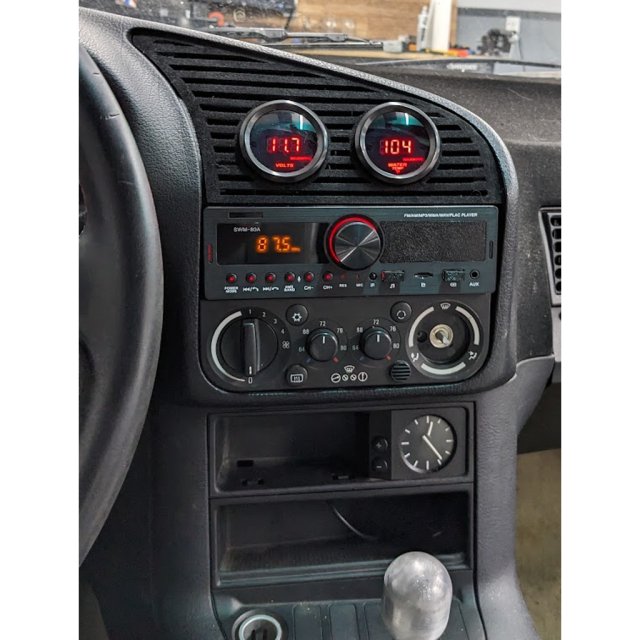

I have only printed the 2 52mm gauge version. All of them should work, but I'm not positive on the 3 52mm gauge one. I used a ziptie on the shorter mounting tab to the screw hole on the top of the radio to pull the left end in a little, otherwise it sticks out a bit.
PLA will melt in the sun. I printed in PETG and finished it off with suede flocking and it's been fine.
There's a .3mf file in case edits need to be made. The model is pretty hacked together, but hey, it prints!
Thanks to https://www.thingiverse.com/vague_badger/designs for the original design that I based this off of.
If you're selling this on eBay and using my pictures without attribution, I don't like you.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
