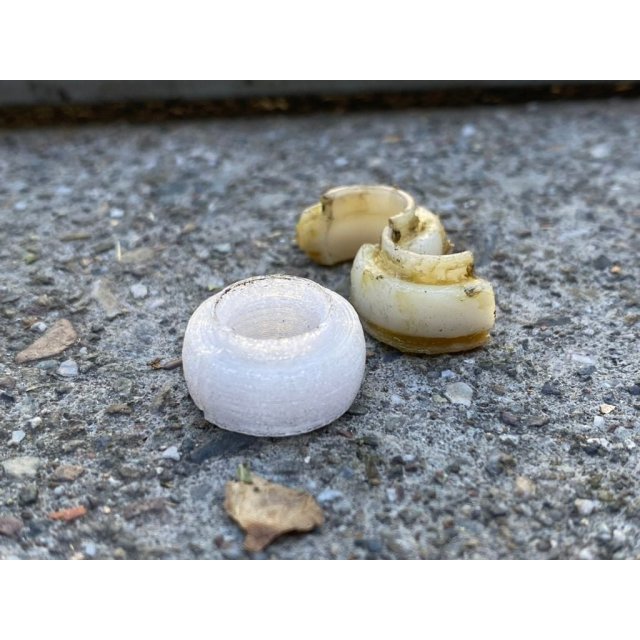

Replacement Window Bushing
Replacement Window Bushing design listed for 1995–1999 Subaru Legacy. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Subaru
- Model
- Legacy
- Year range
- 1995–1999
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Below I’ve outlined the steps I took to replace the window bushings:
1. Lower the window to 90% down. Remove the two nuts connecting the rail to the window regulator. These nuts can be accessed through the hole in the door. Once the nuts are off, remove the rail.
2. There is a tab bent into the rail on the rear-facing side to keep the bushings from sliding out. I used a small crescent wrench to bend the edge of the rail until I could slide the bushings in and out.
3. Then lower the regulator mechanism all the way and use channel locks to force the new bushings onto the window regulator.
4. Slide the rail back onto the new bushings. You’ll need to move the regulator up a bit to get enough clearance. Then lower it back down and use the small crescent wrench to bend the metal tab back up once the rail is in place on the regulator.
5. Adjust the window regulator back to 90% down. Line up the window bolts with the holes in your freshly repaired regulator and reinstall the nuts securely.
6. Grease the rail where the bushings will make contact.
I hope this helps someone. Compared to replacing a full regulator it saves a ton of time and money.
Note: If the window falls all the way down, make sure you get the plastic guide back onto the frontmost part of the window. It will likely have fallen down into the door. Your window will not function correctly without this plastic guide.
I've also got printed bushings available on eBay if you'd prefer them delivered.
Search 1995-1999 Subaru Legacy replacement window bushing.
Happy fixing!
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
