Radio Panel
Radio Panel design listed for 2009 SEAT Ibiza. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- SEAT
- Model
- Ibiza
- Year range
- 2009
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

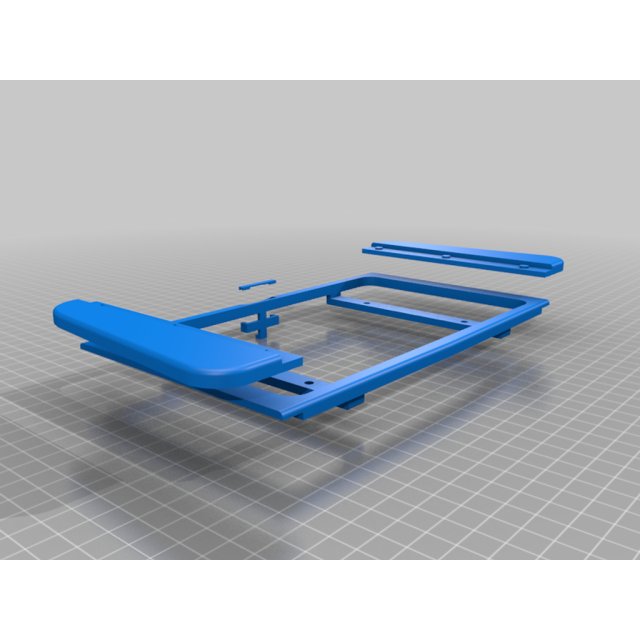

This is a custom radio panel for the Seat Ibiza 2009 6J.
It will fit into the car if you remove the original panel as well as the radio inside it.
A 7" Touchscreen display (with a raspberry pi mounted onto the display) will fit inside of the cut-out space inside the panel and can be screwed together, using the 4 holes on the supports.
Display:
https://www.amazon.de/Raspberry-Pi-7-Inch-Screen-Display/dp/B014WKCFR4
The idea behind this project is to build a bluetooth radio for my car.
You can find scripts that provide functions and further information at: (also work in progress)
https://github.com/Roggerson/radio
To be added:
Cut-Outs for USB slots
Any kind of feedback,questions and criticism is highly appreciated
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
