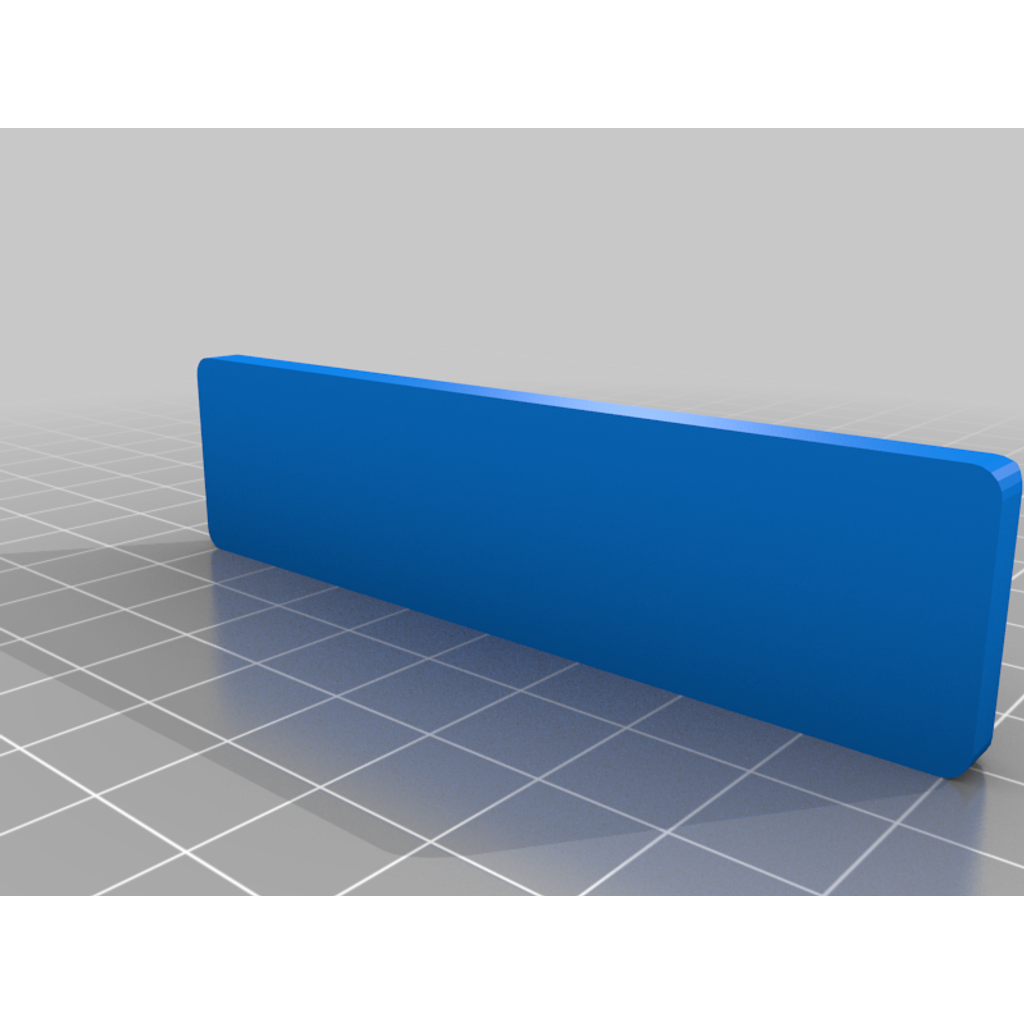

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Center Console Cup Holder
Center Console Cup Holder design listed for 1983–1992 Volkswagen Golf. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volkswagen
- Model
- Golf
- Year range
- 1983–1992
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
part number 4B0862534D
Printed in PETG, has held up nicely for the last year.
Side_Cover needs to be glued the faceplate by the cutout for the cig lighter. I suggest holding the faceplate in place on the center console and then glueing, aligning the side cover. Holder needs to be glued to the cupholder, the other parts attach with a couple of short M3 and M2 screws. Little bit of play in the Holder holes to allow for perfect alignment.
Smoothed the face plates with filler, then used wrinkle spray paint to get that "abs surface".
I did modify the audi cupholder so it closes a bit sooner when pushing it in, otherwise it will rub on the faceplate, but can't remember exactly what I did.
Cut a hole in the back of the ashtray slot, and used epoxy putty to fix the cupholder in place from the rear.
Feel free to modify, as I probably won't be updating the design, was a one-off for my car.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
