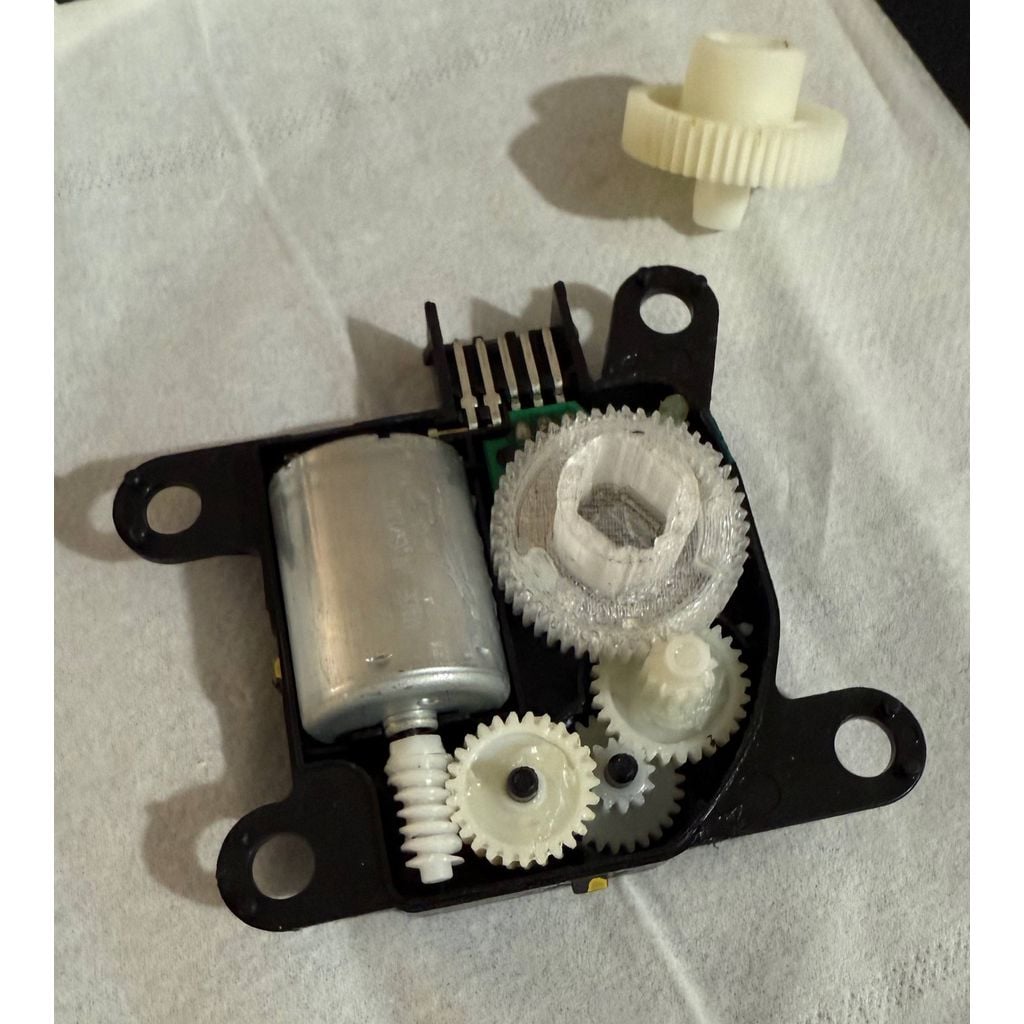

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
A/C Blend Door Gear
A/C Blend Door Gear design listed for 2010–2015 Hyundai i20. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Hyundai
- Model
- i20
- Year range
- 2010–2015
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Among most cars equipped with an electric HVAC system, there’s often a common issue that appears after a few years of use: when changing the climate control settings, you hear a clicking sound. This is usually caused by a broken gear inside the blend doors.
Instead of paying for the entire component, you can simply replace the damaged gear.
All you need to do is remove all the clips around the part, locate the broken gear, and install a new 3D-printed replacement.
(The file I’ve provided is for the larger gear.)
I recommend using ABS if PETG is not available, for thermal safety—car interiors can get very hot. This is a part you don’t want to soften.
(Be sure to print it solid and at low speed to ensure good quality.)
