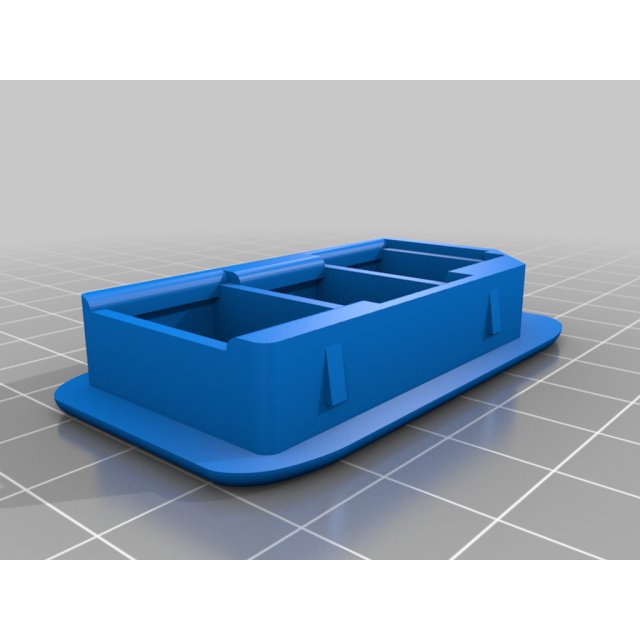

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Audio Auxiliary Jack Replacement Panel
Audio Auxiliary Jack Replacement Panel design listed for 2015–2017 Subaru Legacy/Outback. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Subaru
- Model
- Legacy/Outback
- Year range
- 2015–2017
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The dimensions of the factory part are only just large enough for 3 Keystone sockets. The middle socket is flipped to reduce conflict between the retention tabs on adjacent Keystone jacks, since not all are made to fit so closely together.
Many (if not most) aftermarket stereos, even top-end flagship models, do not support USB hubs on their rear USB ports. Since these stereos often have several types of rear inputs and often no front USB inputs, it gets messy or awkward to have cables running between interior panels. This solution allows a neat and customizable way to route those rear inputs to a factory location.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
