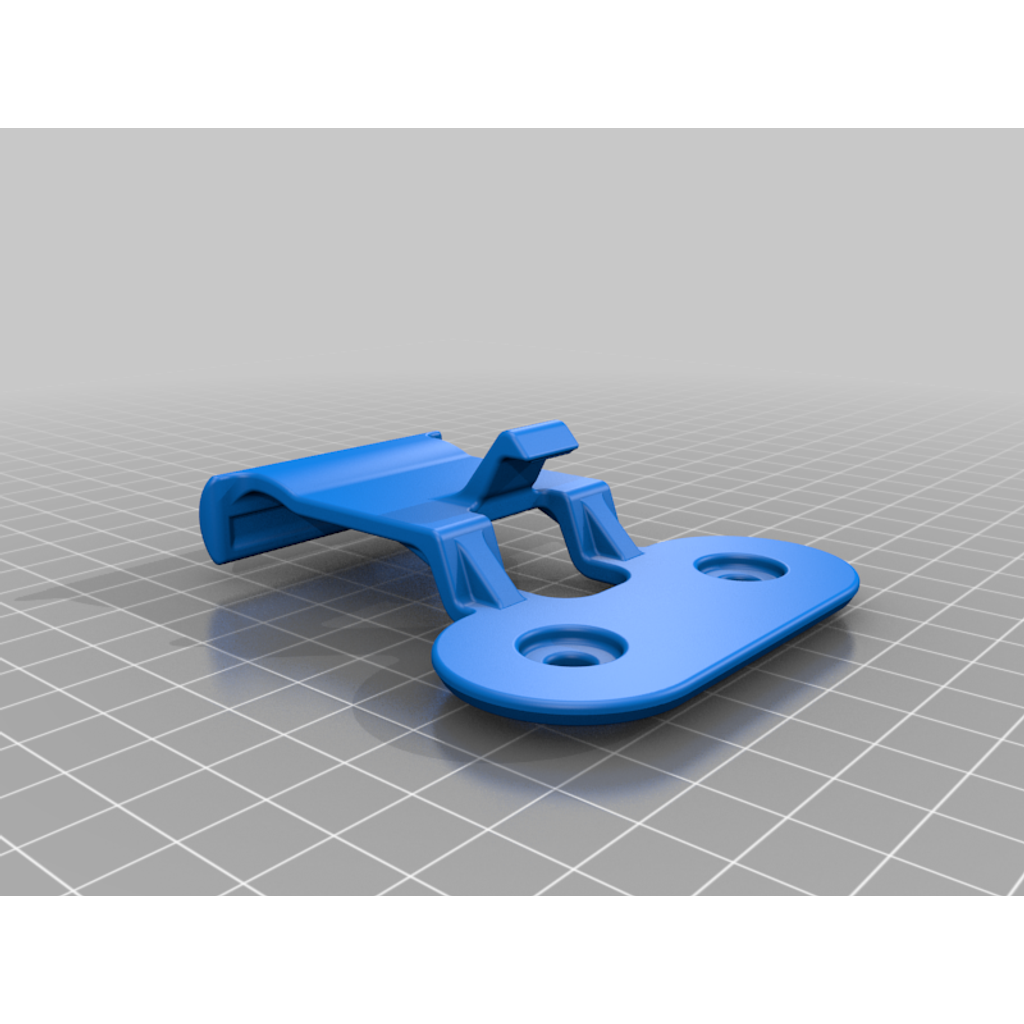

Center Console Latch
Center Console Latch design listed for 1997–2001 Jeep Cherokee. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Cherokee
- Year range
- 1997–2001
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Print perpendicular to bed surface. This method ensures that the filament tensile strength gives the part its structure when in use, as opposed to the strength of the bonds between layers.
Infill over 50% tends to make the part too stiff and has seen cracking at 100% infill. Infill type should be any 3D-based pattern to ensure strength when printing perpendicular to bedplate. Tri-hexagon was used for test parts.
Tree supports and basic raft used.
PLA prototype part has performed well since part installation. In-vehicle temperatures between 55F and 85F with no visible deformation or weakness of part. PETG and ABS would, naturally, be preferred choices for full longevity.
Change Log:
Updated March 11th, 2022 - added stop bar fulcrum, doubled thickness of gussets at front and rear sides of lift. Added fillets, chamfers and edge breaks. Narrowed size of latch tooth opening to use as tunable part stiffness feature. Component is overall stronger.
Instruction Notes: For Rev. 07, adjustment may be required to the two sides of the hinge - in many cases, no adjustment is necessary, but due to tolerances of Chrysler manufacturing in 1997-2001, the latch may need to be positioned as far forward as possible by pulling on loosening the mounting screws to the hinge and lid, pulling them forward (upward) and retightening the screws. Future design will incorporate slotted mounting holes.
