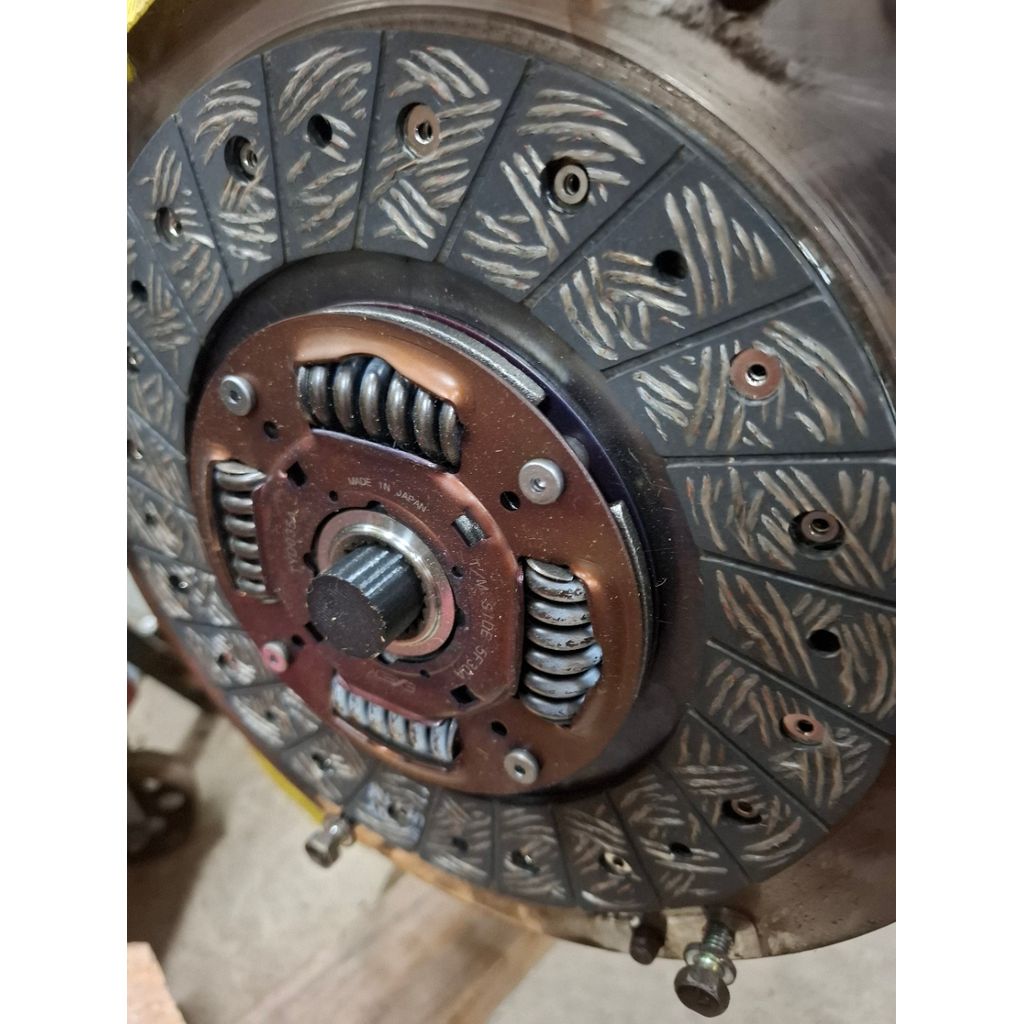

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
4AGE T50 Clutch Alignment Tool
4AGE T50 Clutch Alignment Tool design listed for 1966 Toyota Corolla. Listed category: other. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Corolla
- Year range
- 1966
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
It is for a Toyota 4AGE (20V Silvertop in this instance) mated to a T50 (Sprinter) gearbox. This is in a RWD configuration, so probably won't work for FWD or midmount (Corollas or the first MR2). The dimensions are specific to the gearbox, as the tool diameters should be the same as the input shaft. (BTW you don't need the splined tools.... waste of printing time. You just need to fit the inner diameter of the clutch plate and the outer diameter of the clutch input shaft)
I printed this out of PETG with 20% infill using the Qidi Studio 0.2mm "standard" settings, but material or strength isn't critical here so print with what you have.
NB: Most clutch kits you buy have these already - mine didn't, hence the need for this.
Happy tinkering!
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
