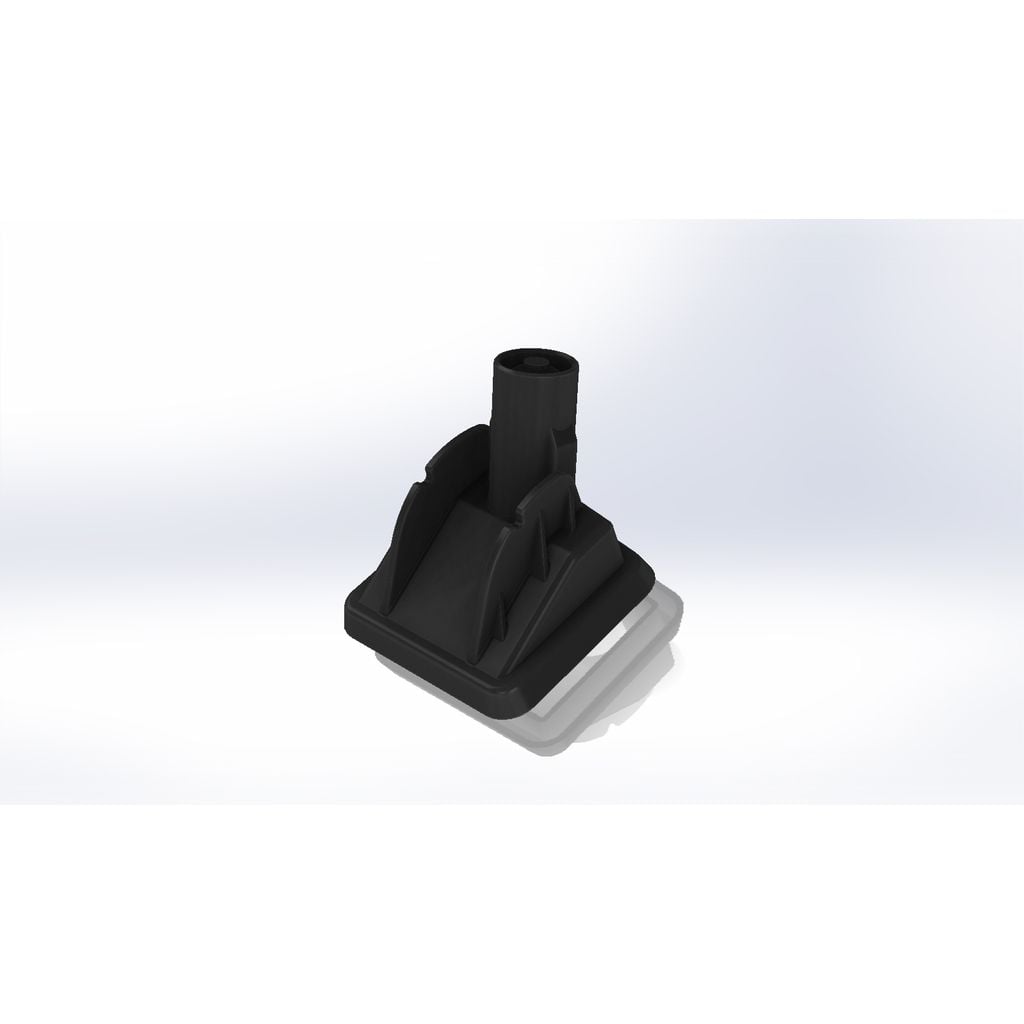

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Fog Light Bottom Cover
Fog Light Bottom Cover design listed for 1995–2012 Volvo V40/S40. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- V40/S40
- Year range
- 1995–2012
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Esta es la tapa inferior del faro rompeniebla del Volvo V40 o S40 de primera generación (pre-facelift). Es la tapa que se retira para cambiar la lámpara del faro.
Es común que esta pieza se pierda o se dañe, y lamentablemente no se consigue como repuesto original por separado.
Este modelo fue diseñado para encajar correctamente, con buena sujeción y sellado.
Se recomienda imprimir en ABS por su resistencia al calor y a la intemperie.
🎁 Si este diseño te resultó útil, podés apoyarme invitándome una cerveza 🍺 en: https://buymeacoffee.com/carlosheil4
--------
Fog Light Bottom Cover – Volvo V40/S40 MK1 (pre-facelift)
This is the bottom cover of the fog light for the Volvo V40 or S40 first generation (pre-facelift). It’s the piece that you remove to change the fog light bulb.
This cover is often lost or damaged, and it’s not available as a separate OEM part.
This 3D model is designed to fit well and hold securely in place.
It’s best to print it in ABS to ensure durability against heat and outdoor conditions.
🎁 If this design helped you out, feel free to support me by buying me a beer 🍺 here: https://buymeacoffee.com/carlosheil4
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
