Design by ottos3d · Original design · CC-BY-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

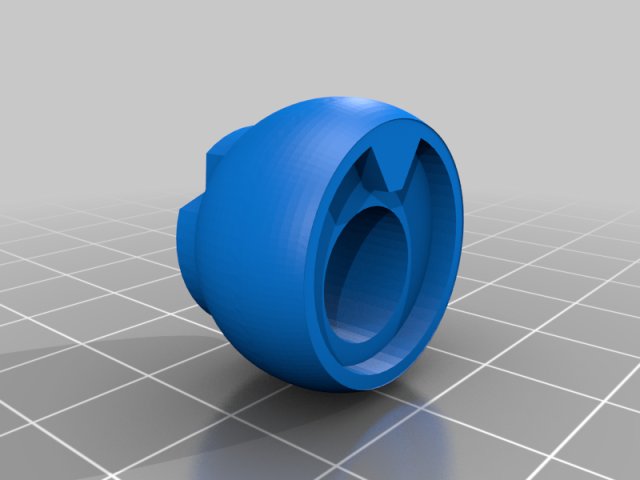

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Wiper Link Bushings
Wiper Link Bushings design listed for 1990 Nissan 300ZX. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Nissan
- Model
- 300ZX
- Year range
- 1990
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Brand: Creality
Printer: Ender 3
Pro Rafts: Yes Supports: Yes Resolution: 0,10 and 0,15 Infill: 100% Filament: universal fillament sold in local store Petg and ABS black Notes: petg for bushings ,015mm layerhight and support, wiper motor ball bushing 0,10mm layerhight , ABS fillament no support, but raft. for bushing use fillament with some give petg or nylon, and print them laying on side. or they will crack on installation to linkarm, clean linkarm with acetone and use thick superglue to lock the bushing from rotate in the link arm (BEWARE OF SUPERGLUE FLYING AROUND WHEN PART SNAPS IN PLACE) for the ball, use hard fillament with no addetive like carbon, because of exessive wear on bussings. Grease on innstalation is mandatory, or bushings will fail.(( AND ALL OF THEESE BUSHINGS IS MADE WITH NO GOOD PICTURES, OR MEASUREMENT OF THE OEM PART, AND MADE FOR MY CAR WITH A WORN SYSTEM. PLEASE DO THIS MODIFICATION AT YOUR OVN RISC. they works fine on my car, and oem parts is not longer made. the cover is for the wiper lock system and is made with petg 0,15 layer hight and on its back with support. all is printed with 0,3mm nozzle and 100% infill good luck with the project.
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
