Center Console Spacer
Center Console Spacer design listed for 2021–2022 Jeep Grand Cherokee. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Grand Cherokee
- Year range
- 2021–2022
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
They're pretty self explanatory, You simply print Part A and Part B, and they slide together nicely. There is a notch running through the middle of these, Top half on one and the bottom half on the other. These are 3.1mm wide, and said opening is 4mm leaving .9mm wiggle room. There is a series of wedges on Part A at the bottom, this is to help lock part B in its place and prevent it from wiggling around. Even at its current settings there is very little play in this and it stays pretty perpendicular to eachother, But if you want it even more snug, based on the orientation of my STL file, you could scale the x axis alone to 122% and it will widen this piece to about 3.75mm, leaving a total of .25mm of room in this gap. (Make sure you dont have the other axis locked to maintain proportions)

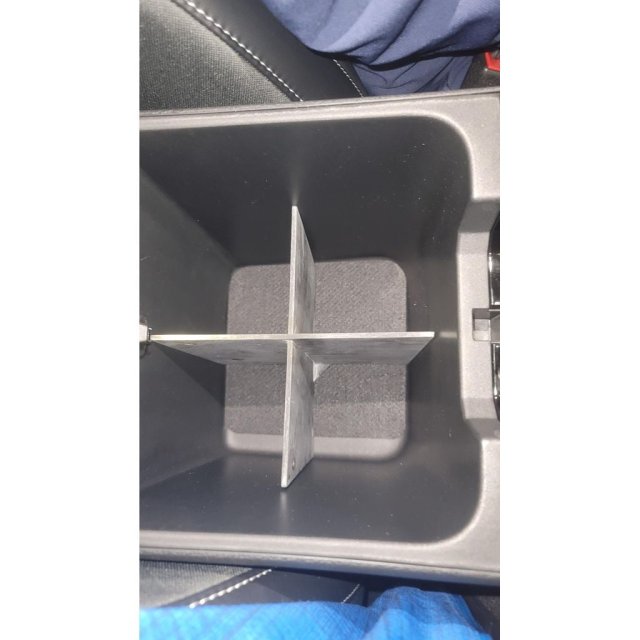

Also, I've included 2 versions of this, Version 2 and Version 3, The difference in these, is only that version 3 has the bottom corners beveled to hug the bottom of the center console more. The images i've attached to this, are version 2 as i printed the 2nd version and sanded/filed the bottom corners myself. Front to back on Part A Version 2, the bottom corner touches the beveled edge of the Center Console itself causing it to sit up 2-3mm. I spent 20 seconds sanding this corner for a tight fit, and then designed version 3 to soften these bottom corners so that no post print processing is required beyond cleaning the object itself.
Hope this helps someone.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
