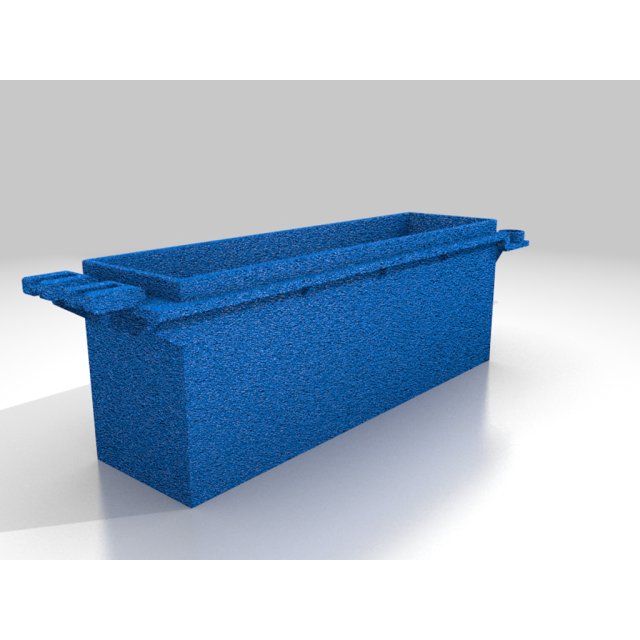

Center Console Cubby
Center Console Cubby design listed for 1994–2001 Audi A4. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A4
- Year range
- 1994–2001
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Original:
Just a warning that I am new to modeling, if anyone has any tips on improving this model please let me know!
This part replaces the popup cupholders in the center console of B5 chassis Audi A4s. May also work in B5 chassis VW Passats, but I have no means of testing to confirm. I personally hate the popup cupholders as they have no support on two sides, which means hot coffee in your lap if you take a corner a little too fast. I swapped the cubby further back to cupholders so needed a better solution for the now useless space, and this was my solution.
Modeled in Blender and sliced in Cura(Cura says there are problems with the model when I load it up but it still slices and prints just fine) I used the generated tree supports touching buildplate with a very high overhang angle(I think 80-85 degrees) so that it only supports the parts near the top that come out at a 90 degree angle.
I intend to print in ABS and will update with successful print settings.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
