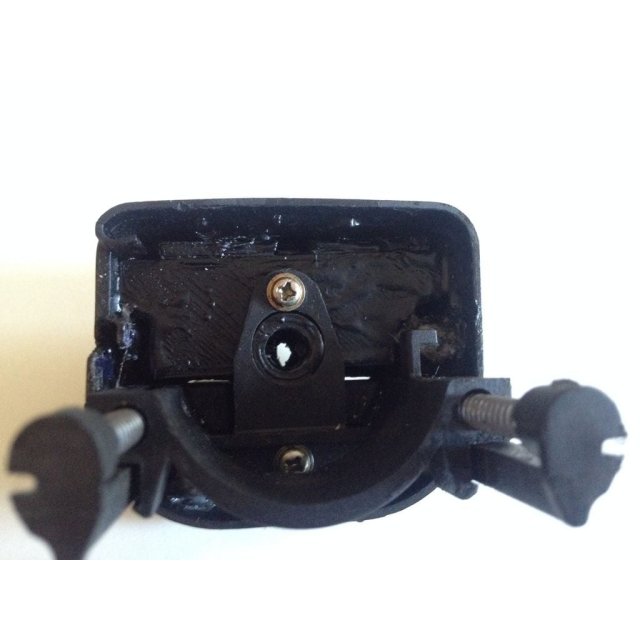

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cargo Shade Retraction Spring Holder
Cargo Shade Retraction Spring Holder design listed for 1999–2005 Audi A6. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A6
- Year range
- 1999–2005
- Submodel
- Avant / Allroad
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Here is an article about the issue and also some fix ideas if the plastic holder is still in place:
http://www.audizine.com/forum/showthread.php/464749-DIY-Fix-a-broken-cargo-cover.
Update1: Also uploaded a small plastic part if the 2 screw bracket witch holds this "cap" in place is also broken just print and glue and push it in place (make sure that the screw hole is drilled/cleaned out to have a flat surface)
Update2: 2016 jan. After using it more than one year no problem with the part, its still holding the shaft firmly, also the -10C cold or 40C heat doesn't caused any issues.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
Then glue in with epoxy two small metal clips witch will hold the spring's shaft in place. In my case the eject mechanisms screws was also broken so this thing will support also these, if yours doesn't broken just drill out these 2 holes. Then just glue in the whole thing with epoxy and should work.
