Brake Pressure Bleed Adapter
Brake Pressure Bleed Adapter design listed for 1995 Toyota Tacoma. Listed category: other. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Tacoma
- Year range
- 1995
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description

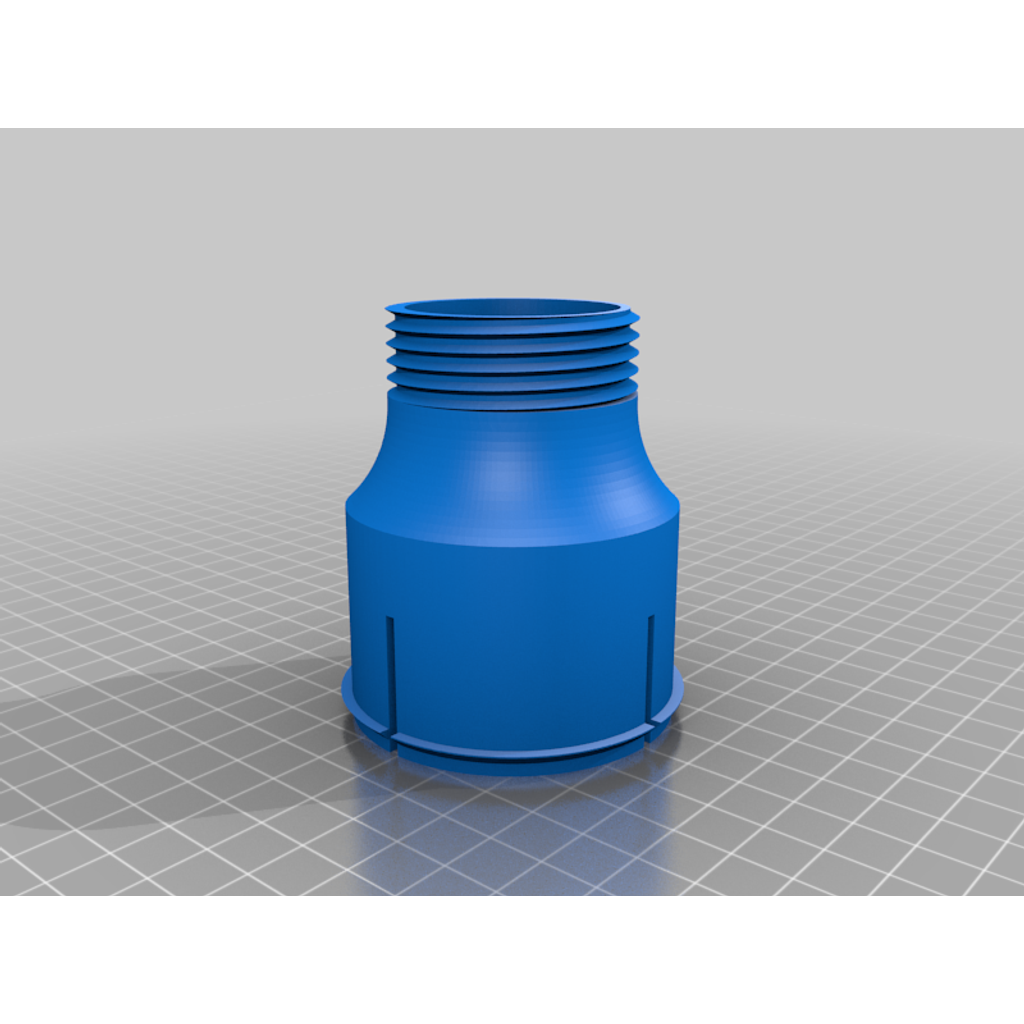

This thing is an adapter to enable you to connect up threaded Euro 45mm brake reservoir pressure bleeder cap to your Toyota Tacoma (and perhaps some other models) instead of having to use a mega cumbersome "universal" adapter. Use with a typical air bleeder hand pump, converted garden sprayer pump, or connect up to your shop air compressor... in which case make sure to run it just enough to get to 10 to 15 psi or so then turn it off and use the air saved in the tank.
The way I use this is as an air source only, not to connect up to a tank of brake fluid. IOW, fill the truck's reservoir to the very top, pressurize it with this setup, bleed the brakes until the fluid gets low in the reservoir, then stop to refill it. Repeat until done.
You can also print a cap and barb here... or use the commercially available one which actually works better because it has a swivel built into the fitting that makes installing and removing the cap easier. If you print the cap and barb they will have to be glued together. I couldn't get a perfect seal using the printed TPU gasket so it would be better to make one out of neoprene.
Pro tip: use Oetiker clamps and medical quick connect fitting on your air lines.
This is not associated with Motive products in any way. That is just the bleeder I happen to have.
Edit: made a minor change 4/12 to make the slots in the adapter shorter to make it easier for the neoprene rubber to cover them entirely.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
