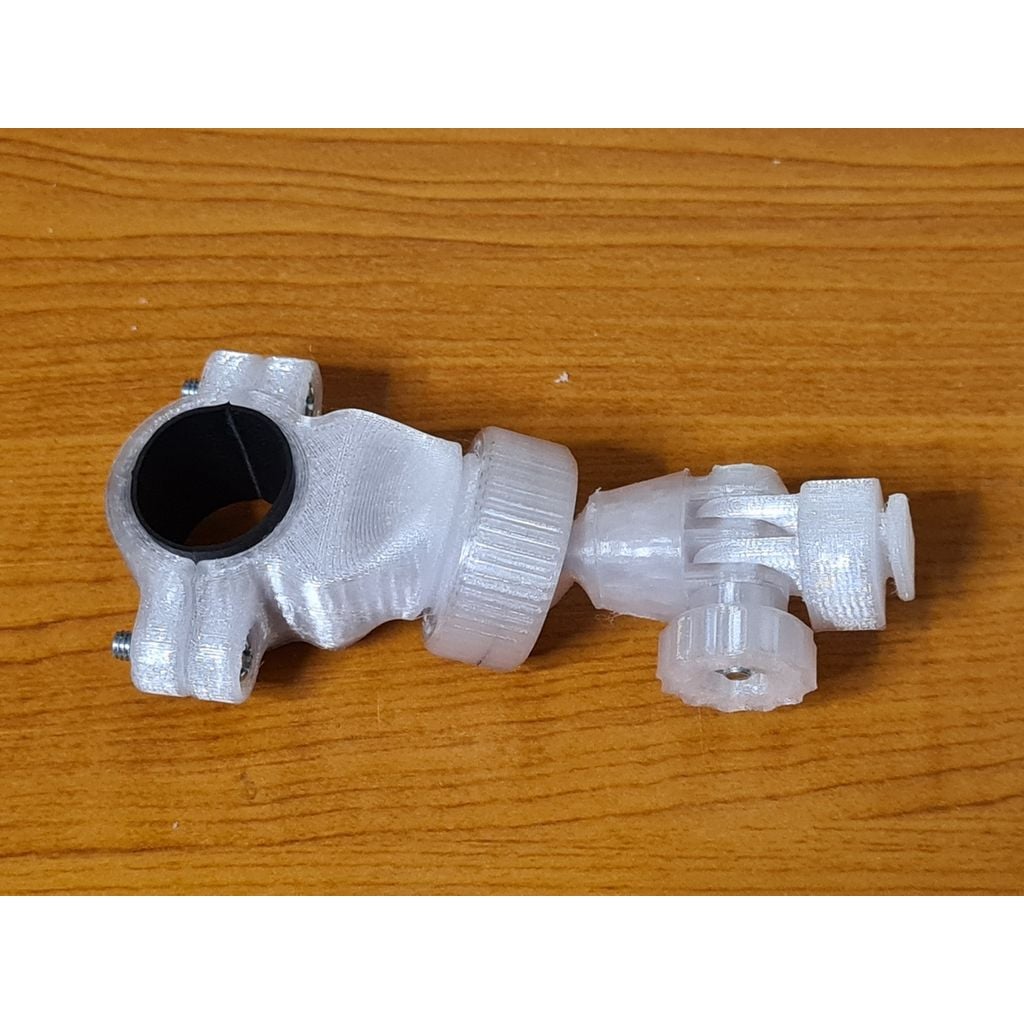

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
GH Mio MiVue mirror holder
GH Mio MiVue mirror holder design listed for 2002–2026 Mazda 6. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- 6
- Year range
- 2002–2026
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Print with PETG or ABS (high temperatures behind the car front glass).
Use at least 25% infill (more is better for small parts).
Adapter should be printed oriented as is for max strength...
2 versions - SHORT and LONG, some parts are common (nut, ball, tip, base).
"tip" is used to connect ball to other part. Warning - at first attach "nut" to "ball", then glue "rod" with "LONG_rod_joint" or "SHORT_adapter_mivue_new" using "tip" and superglue ;-)
Use support for:
- SHORT_adapter_mivue_new / LONG_adapter_mivue_old_joint (normal)
- base (tree)
- nut (tree, buildplate only)
For "base" add some rubber inside buckle part so you will not scratch mirror holder (there is 1mm clerance reserve for this - I used old bycicle tube, check photo)
Screws and nuts used:
LONG version:
- 2x M4x15, pan head (holder)
- 1x M4x24, hex head (knob)
- 3x M4 nut (2x holder, 1x knob)
SHORT version:
- 2x M4x15, pan head (holder)
- 2x M4 nut (2x holder)
Some parts are remixed, some parts are reused from another projects:
- LONG_adapter_mivue_old_joint: https://www.thingiverse.com/thing:3141343
- ball, base: https://www.thingiverse.com/thing:4739696
- nut: https://www.thingiverse.com/thing:4739696
- LONG_knob_M4: https://www.thingiverse.com/thing:641854
<b>EDIT: renamed parts, so you can easlily choose between SHORT (recommended) and LONG version.</b>
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
