24mm Oil Filter Housing Socket
24mm Oil Filter Housing Socket design listed for 2012–2018 Jeep Wrangler. Listed category: specialty-tools. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler
- Year range
- 2012–2018
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
#### V1

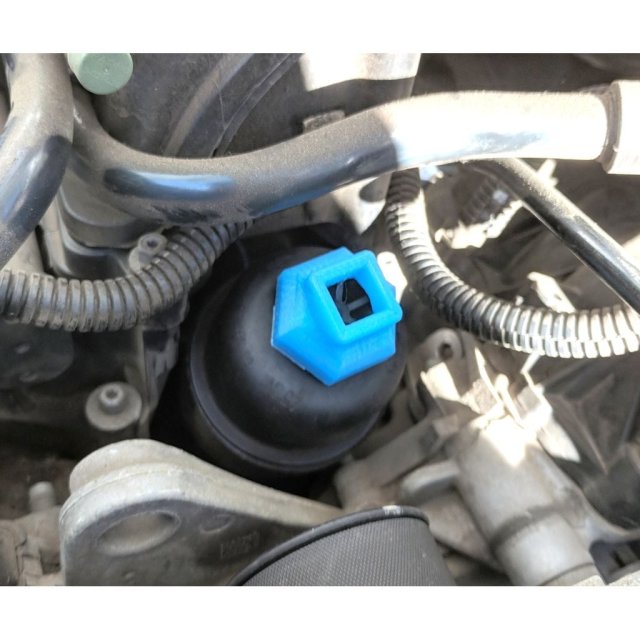

1/2" drive tested in PLA and was able to torque filter housing to spec (25 N·m /18 ft. lbs.) as well as break it free initially without breaking the socket. In destructive testing the PLA version failed at 28 ft. lbs. You may want a large crescent to "start" your cover depending on how long it's been since it was last removed.
#### V2
Thicker (stronger) version with combo drive for 3/8" or 1/2". This will be stronger at the cost of a longer print time and more material used. Destructive testing will be done shortly and results posted... RE-UPLOADED w/ fixed scaling - Thanks for the feedback :-)
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
