Backup Camera Mount
Backup Camera Mount design listed for 2005–2015 Toyota Tacoma. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Tacoma
- Year range
- 2005–2015
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

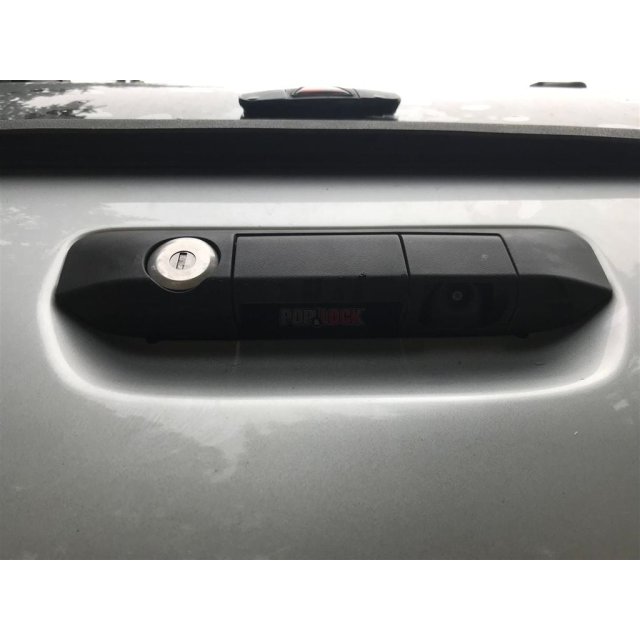

This is an adapter that allows you to attach a NATIKA WD-011 camera available on Amazon (link below) to the factory backup camera location on a Gen2 Toyota Tacoma 2005-2015. I have a 2008 that did not come with the factory backup camera so I got a Pop & Lock locking handle that has a place for the OEM camera (Model PL8540, link below). The camera is a very simple install, only a nut, and two screws. The angle is a little further down than I originally wanted but you can already see the vignetting on the top corners from the handle plastic. I can't move the camera further down without being visible or angle it up without cutting away some of the handle, i.e. its a compromise but works. Overall I'm very happy with the install, the camera is very hidden, and allows me to back up very close to things... especially trailers. Hope you like it!
Designed in CREO 4... native file, stp and stl attached.
https://smile.amazon.com/gp/product/B07H852D49/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1
https://www.etrailer.com/Vehicle-Locks/Pop-and-Lock/PAL8540.html#exp-productdetails=.all-description
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
