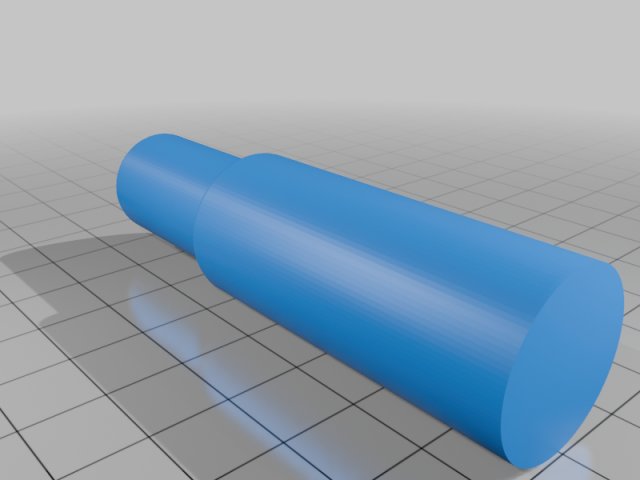

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Clutch Alignment Tool
Clutch Alignment Tool design listed for 1999 Mitsubishi Pajero. Listed category: specialty-tools. Verify dimensions, fitment and material suitability before printing.
- Make
- Mitsubishi
- Model
- Pajero
- Year range
- 1999
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
Brand: Artillery
Printer: Artillery Sidewinder X1
Rafts: Doesn't Matter Supports: No Resolution: Lower is better for easy removal once the clutch pressure plate has been installed Infill: 30% Notes: You might need to modify the scale a little to correspond to your printer settings.Printed at 99.9% on my sidewinder X1 with PLA at 0.12mm layer height.
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
