Radio Volume Knob
Radio Volume Knob design listed for 2004 Mazda RX-8. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- RX-8
- Year range
- 2004
- Submodel
- Classic RE Edition
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Name as: Classic RE Edition
The design feature of the center core which can be print in different colour (before you glue all together)
___________________________________________________________________
Cura settings:
The Base: (Black)
0.2mm layer (for high details prints)
0.8mm shell all round
printed speed: 25mm/s
infill: 26%
print temperature: 198'C
The Shell: (Silver)
0.2mm layer (for high details prints)
0.4mm shell all round
printed speed: 18-22mm/s
infill: 100%
print temperature: 198'C

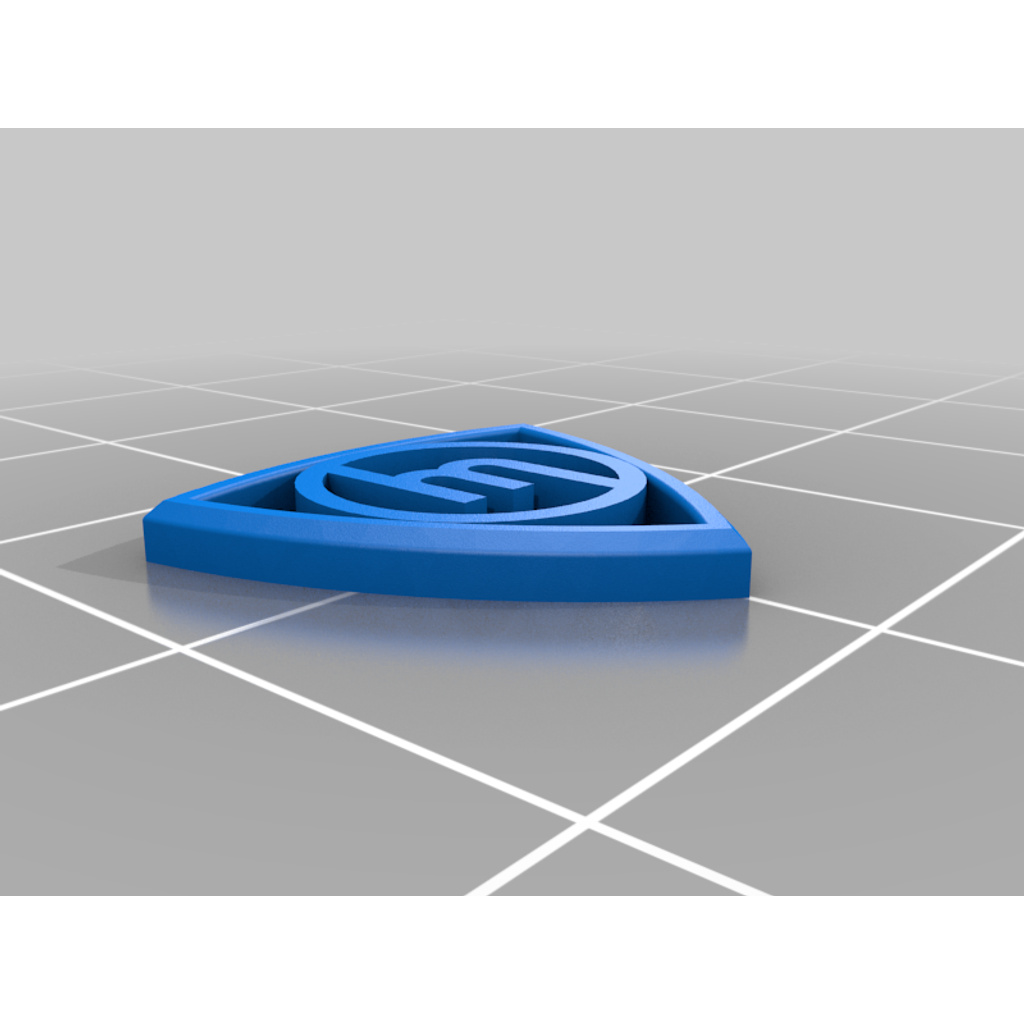

The M Plate: (Sliver)
0.12mm layer (for high details prints)
0.4mm shell all round
printed speed: 12-16mm/s
infill: 100%
print temperature: 194'C
The Core: (Any Colour)
0.2mm layer (for high details prints)
0.8mm shell all round
printed speed: 20-22mm/s
infill: 100%
print temperature: 196'C
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
