Folding Magnetic Phone Mount
Folding Magnetic Phone Mount design listed for 2016–2024 Mazda MX-5 Miata. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 2016–2024
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

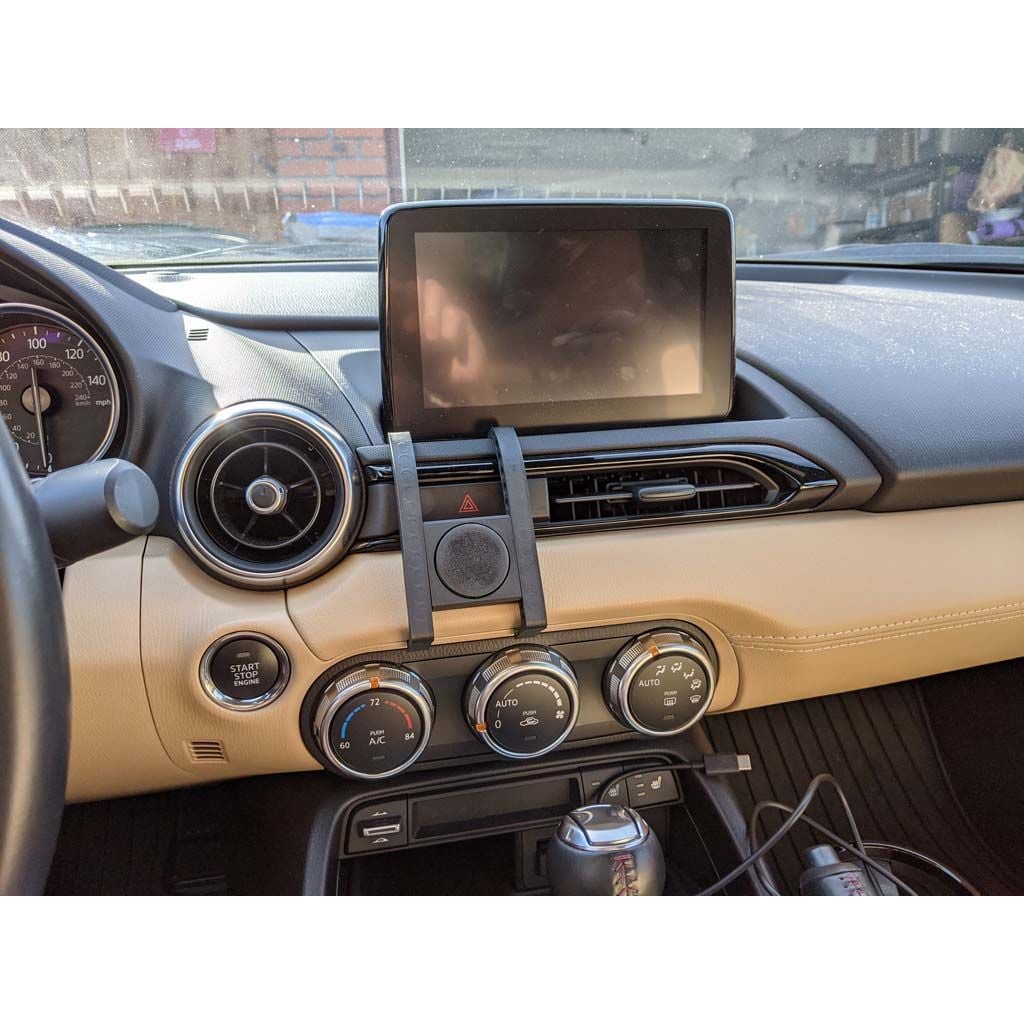

It should fit perfectly snapping into the crevices of the Miata just under the hazard light button.
There is a hole on the bottom which should allow you to run your USB cable thru it.
The bottom portion folds up and clips to the magnet portion to be out of the way when you don't need it.
There is also a fixed bottom version if you don't like the folding.
Print with supports from the build plate.
To give the phone a little more friction so it doesn't move left/right as much, cover the magnetic portion with plastidip.
Also.. I'll be adding side blockers of various lengths to make the phone more secure in case you want to drive aggressively.
All the parts are modular, so you can move them up/down as you like. In addition, if you just want to use the magnet portion, you can do that also.
UPDATE: After I plastidipped the magnetic portion, I ended up not needing the bottom holder at all because it doesn't move at all with the rubber there. Looks much cleaner and nicer if you go that route so I highly recommend plastidip!
UPDATE 2: Highly advisable to print this in ABS! My PETG version started getting loose and warping after about a month. My ABS print has stayed strong for a last 3 months and is still rock solid.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
