Pack de Soportes para Compases de Ventana / Window Stay Brackets & Fittings Pack
Pack de Soportes para Compases de Ventana / Window Stay Brackets & Fittings Pack design listed for 1988 Hymer B544. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Hymer
- Model
- B544
- Year range
- 1988
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Este pack incluye:
Soportes de marco ("Hombros"): Las piezas que van sujetas a la estructura de la autocaravana.
Articulaciones de ventana ("Muñecas"): Las piezas que conectan el brazo con el cristal de la ventana.
Placas exteriores: Embellecedores para la parte externa.
Notas de impresión:
Al ser piezas que soportan tensión y están expuestas a cambios de temperatura (especialmente las que tocan la ventana al sol), recomiendo encarecidamente imprimirlas en PETG o ASA. El PLA terminará deformándose con el calor del verano.
--------------------------------------------------------------------------------------------------------------------------------------

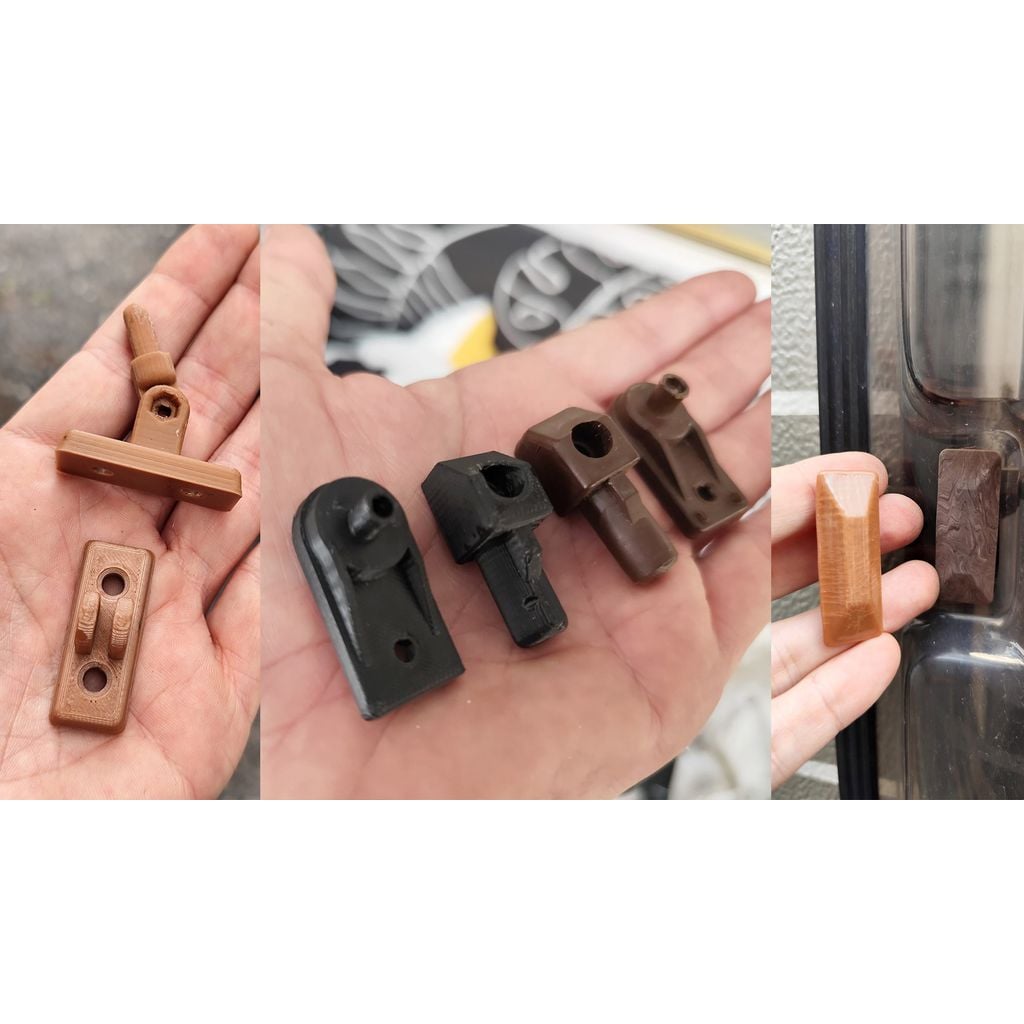

Hi everyone! I'm sharing this set of parts I designed to restore the window stays (arms) on my 1988 Hymer B544. Over time, the original plastic fittings become brittle and break, and finding exact replacements that match the original screw holes can be a challenge.
This pack includes:
Frame Brackets ("Shoulders"): The parts that attach to the motorhome body.
Window Hinges ("Wrists"): The fittings that connect the arm to the window pane.
Exterior Plates: Trim pieces for the outside of the window.
Printing Notes:
Since these parts are under tension and exposed to temperature changes (especially those touching the glass in the sun), I highly recommend printing them in PETG or ASA. PLA will eventually deform under the summer heat.
